Normally Open PCB 12v Automotive Relay , 4 Pins 5PINS Relay Car Part
Meishuo MAD-S-112-C T78 relay 12v 5pins electromagnetic relay for car spare parts
| F1 | Relay feature: |
|---|
-samll size, light weight
-Switching capacity up to 20A (at 85.C)
-High heat resistance
-Outline dimensions:15.25*12.25*13.6mm
-Coil power: 600mW(0.6W)
PCB relay
| F2 | Specification: |
|---|
| characteristics | ||||||
| Contact Form | 1C | |||||
| Contact material | Silver Alloy | |||||
| Max.Switching Current | NO/NC:35A/20A | |||||
| Max.Switching voltage | 30VDC | |||||
| Min.Contact Load | 1A 6VDC | |||||
| Rating | 20A/15A 14VDC | |||||
| Electrical life | 100000 ops | |||||
| Mechanical Life | 10000000 ops | |||||
| Operate Time | ≤10ms | |||||
| Release Time | ≤5ms | |||||
| Ambient temperature | -40°C~+85°C | |||||
| Storage Temperature | -40°C~+85°C | |||||
| Termination | PCB | |||||
| Construction | Sealed | |||||
| Unit Weight | 6g | |||||
| Coil power | 0.6w | |||||

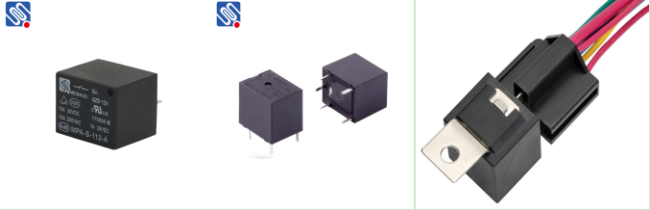

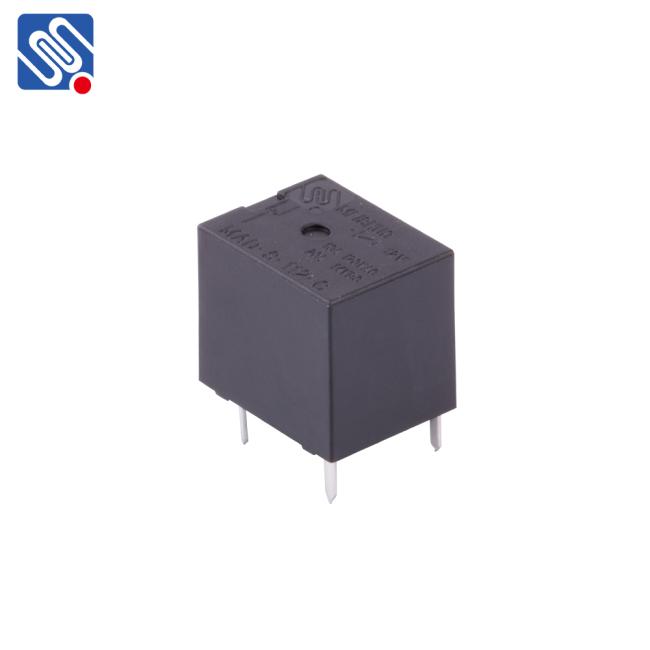

| F3 | Relay Photo: |
|---|

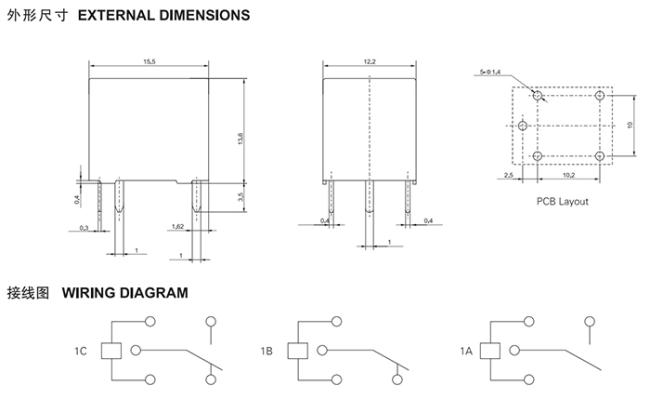

| F4 | Drawing: |
|---|
| F5 | Package: |
|---|
-100pcs/white box
-2000pcs/inner carton
-4000pcs/carton
| F6 | Applications: |
|---|
1) for cars: alarm system, door lock, automatic door and window, seat adjust, speed limit signal control, ect…
2) others: motocycle alarm system, electric bike alarm system
| F7 | Meishuo Certificates: |
|---|
| F8 | Material testers |
|---|
| F9 | Relay testers |
|---|
Each relay have to passed 5 times testing before shipping.
1. First testing after assemble
2. Second testing after relay housing closed
3. Third testing after sealing
4. Fourth testing after packing
5. Fifth testing relay when leave Meishuo warehouse
| F10 | Client feedback |
|---|
CB relay
| F11 | Meishuo Customers: |
|---|
| F12 | Something About Meishuo: |
|---|
1) It's a factory, built in Feb.2007
2) Now, employs more than 400 people, enjoyee 12, quality person 22
3) Main products: relays, sockets, connectors, harness, auto parts
4) Production lines: 15 lines
5) Capacity: 400000 pcs per day
| F13 | Meishuo Factory: |
|---|
| F14 | Meishuo Management: |
|---|
| F15 | Hot popular relay and harness |
|---|
- T73 (MPA: 10A 12V 4pins sealed)
2.MAD (20A 12V 4pins sealed 0.6W)
3.Harness of MSC-C ( L14.5cm half stripped 1.5cm,it 's can match JD1914 to use)
We have stock now ,pls contact with us ,quickly!!!
PCB relay
