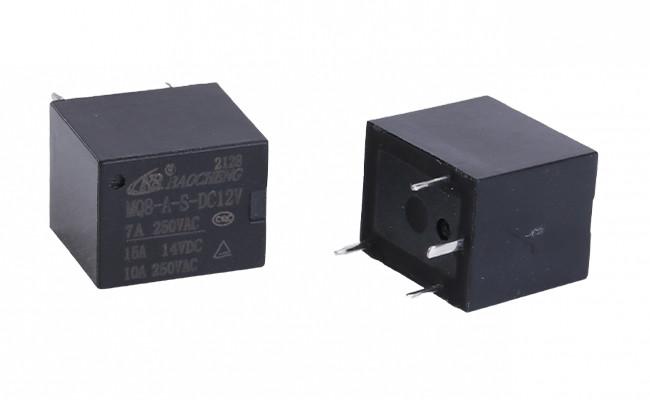

Industrial Control Universal Automotive Relay Good Performance MQ8-A-S-DC12V
Industrial Control Universal Automotive Relay Good Performance MQ8-A-S-DC12V
Universal Automotive Relay Description:
MQ8 series relays are widely used for automotive products, small in size, safe and reliable, long-lasting, perfectly compatible with G8QNxxx of Omron, HFKWxxx of Hongfa,895xxx of Songchuan, etc.
Universal Automotive Relay Feature:
1. Durable, safe, and reliable
2. Low coil power 0.36W / 0.6W
3. Small size, lightweight
4. Widely used for fan control, car flame glowplug, car horn, etc.
Universal Automotive Relay introduces:
The relay is an electric control device, which is an electrical appliance that causes the controlled quantity to undergo a predetermined step change in the electrical output circuit when the change of the input quantity meets the specified requirements. It has an interactive relationship between the control system and the controlled system. Usually used in automatic control circuits, it is actually an "automatic switch" that uses a small current to control the operation of a large current. Therefore, it plays the role of automatic adjustment, safety protection, and conversion circuit in the circuit.
Universal Automotive Relay Coil Rating:
| No. | Coil Voltage(VDC) | Coil ResistanceΩ±10% | Pick up (VDC) Max. (75% of Rated Voltage) | Drop out (VDC) Min. (10% of Rated Voltage) | Power (W) | Operate Time (ms) | Release Time (ms) | |
| Rated | Max. | |||||||
| 005-250 | 5 | 5.5 | 42 | 3.5 | 0.5 | 0.6 | ≤10 | ≤5 |
| 006-250 | 6 | 6.6 | 60 | 4.2 | 0.6 | |||
| 009-250 | 9 | 9.9 | 135 | 6.3 | 0.9 | |||
| 012-250 | 12 | 13.2 | 240 | 8.4 | 1.2 | |||
| 024-250 | 24 | 26.4 | 960 | 16.8 | 2.4 | |||
| 005-540 | 5 | 5.5 | 31 | 3.5 | 0.5 | 0.8 | ≤10 | ≤5 |
| 006-540 | 6 | 6.6 | 45 | 4.2 | 0.6 | |||
| 009-540 | 9 | 9.9 | 101 | 6.3 | 0.9 | |||
| 012-540 | 12 | 13.2 | 180 | 8.4 | 1.2 | |||
| 024-540 | 24 | 26.4 | 720 | 16.8 | 2.4 | |||
