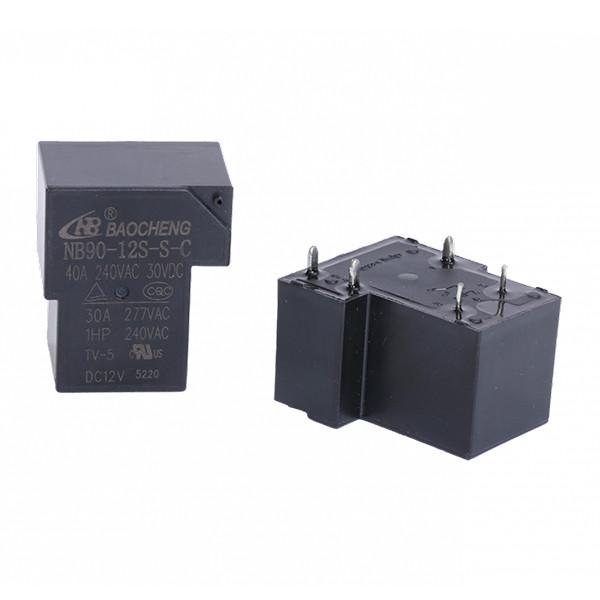

Dust Tight Type 12V 50A Relay NB90-12S-S-C For New Energy Equipment Class F
Dust-Tight Type 12V 50A Relay NB90-12S-S-C New Energy Equipment Class F
12V 50A Relay Introduce:
The relay is an electric control device, which is an electrical appliance that causes the controlled quantity to undergo a predetermined step change in the electrical output circuit when the change of the input quantity (excitation quantity) meets the specified requirements. It has an interactive relationship between the control system (also known as the input loop) and the controlled system (also known as the output loop). Usually used in automatic control circuits, it is actually an "automatic switch" that uses a small current to control the operation of a large current. Therefore, it plays the role of automatic adjustment, safety protection, and conversion circuit in the circuit.
12V 50A Relay Description:
It is the latest design relay that complied with EU standards.PIN widen, brass material, Gap with 3.0mm, high coil power 2.25W, between contacts and between coil & contacts both are 4000VAC, especially use for EV charging equipment of new energy field.
12V 50A Relay Parameter:
| Operate Time | ≤15ms |
| Release Time | ≤10ms |
| Shock Resistance | Operation extremes 10G Damage limits 100G |
| Vibration Resistance | 10Hz～55Hz double amplitude 1.5mm |
| Ambient Temperature | ﹣55℃～85℃ |
| Relative Humidity | 85% RH, 40℃ |
| Termination | PCB |
| Weight | Approx.30.0g |
| Package | Sealed; Dust-proof type |
