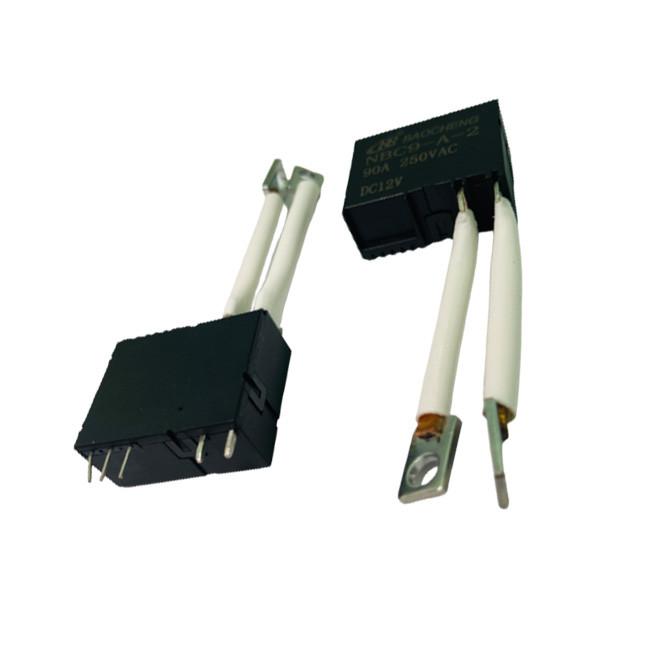

BaoCheng Relay NBC Brand Magnetic Latching Relay NBC9-A-2 Conversion Circuit
BaoCheng Relay NBC Brand Magnetic Latching Relay NBC9-A-2 Conversion Circuit
Magnetic Latching Relay Features:
1. Environmental, power saving
2. 1.5W or 3W coil power for option
3. NO or NC can be switched by hand
4. High sensitivity
Magnetic Latching Relay Applications:
1. Pre-paid power meter
2. Smart control, such as automatization equipment
3. synchronous switch
Magnetic Latching Relay Specification:
| Contact Rating | ||
| Contact Form | 1A/1B | |
| Contact Resistance Max | 20mΩ | |
| Contact Material | AgSnO2, AgNi | |
| Contact Load Capacity(Resistance) | 90A 250VAC ,60A/250VAC | |
| Switching Power Max. | 22500VA | |
| Switching Voltage Max. | 250VAC | |
| Switching Current Max. | 90A | |
| Life expectancy | Electrical |
1x10^4 (electric meter) 1x10^5 (60A 250VAC)
|
| Mechanical | 1x10^5 (electric meter) 1x10^6 | |
Magnetic Latching Relay Introduces:
The new relay refers to the electromagnetic relay developed and produced in order to meet the new special requirements and meet the use under special environmental conditions. Its main features are small size, lightweight, vibration resistance, impact resistance, and load range from low level to Load to 5A, 28 V rated load, the product has reliability index (failure rate level) requirements, the product adopts the airtight sealing structure of resistance welding or laser welding sealing, mainly used in signal transmission and weak current in electronic control equipment power switch.
