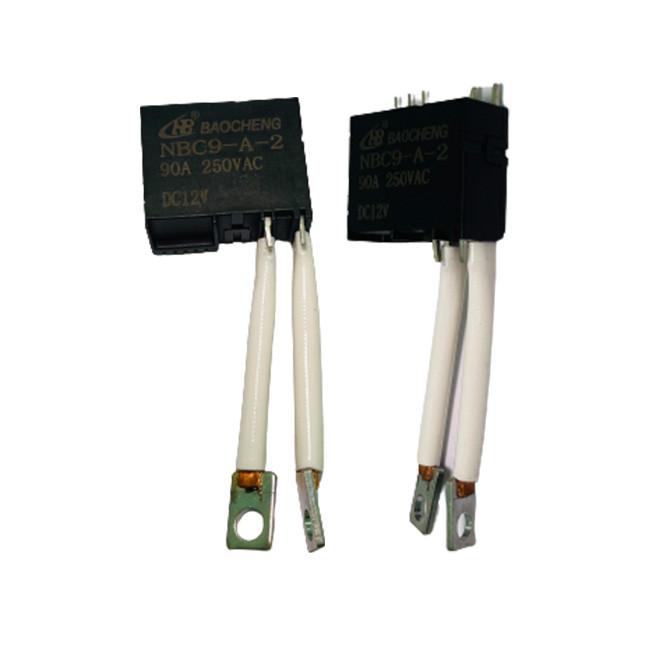

BaoCheng Relay Electric Control Device Magnetic Latching Relay NBC9-A-2 NBC Brand
BaoCheng Relay Electric Control Device Magnetic Latching Relay NBC9-A-2 NBC Brand
Magnetic Latching Relay Features:
1. Environmental, power saving
2. 1.5W or 3W coil power for option
3. NO or NC can be switched by hand
4. High sensitivity
Magnetic Latching Relay Applications:
1. Pre-paid power meter
2. Smart control, such as automatization equipment
3. synchronous switch
Magnetic Latching Relay Specification:
| Contact Rating | ||
| Contact Form | 1A/1B | |
| Contact Resistance Max | 20mΩ | |
| Contact Material | AgSnO2, AgNi | |
| Contact Load Capacity(Resistance) | 90A 250VAC ,60A/250VAC | |
| Switching Power Max. | 22500VA | |
| Switching Voltage Max. | 250VAC | |
| Switching Current Max. | 90A | |
| Life expectancy | Electrical |
1x10^4 (electric meter) 1x10^5 (60A 250VAC)
|
| Mechanical | 1x10^5 (electric meter) 1x10^6 | |
Magnetic Latching Relay Introduces:
Due to the special performance of the new relay, its detection method and detection requirements are also different from those of conventional relays. The main inspection contents include electrical parameter inspection, electrical performance index inspection, mechanical performance index inspection, physical performance index inspection, etc.
