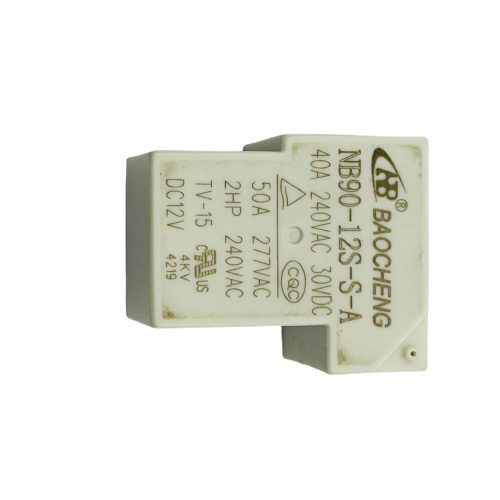

BaoCheng Relay Control Element Magnetic Latching Relay NB90-12S-S-A NBC For Monitor
BaoCheng Relay Control Element Magnetic Latching Relay NB90-12S-S-A NBC For Monitor
Magnetic Latching Relay Features:
1. Environmental, power saving
2. 1.5W or 3W coil power for option
3. NO or NC can be switched by hand
4. High sensitivity
Magnetic Latching Relay Description:
New energy products, like electric vehicles, must be a trend in the next few days. So more and more fast-charging stations are made and satisfy the need for electric cars power-charging.NB90 series AC relay is specially applied to the charging point. It is a high switching capacity for contacts, is a dust-proof or sealed type option, and is environmentally friendly.
Magnetic Latching Relay Specification:
| Contact Rating | ||
| Contact Form | 1A/1B | |
| Contact Resistance Max | 20mΩ | |
| Contact Material | AgSnO2, AgNi | |
| Contact Load Capacity(Resistance) | 90A 250VAC ,60A/250VAC | |
| Switching Power Max. | 22500VA | |
| Switching Voltage Max. | 250VAC | |
| Switching Current Max. | 90A | |
| Life expectancy | Electrical |
1x10^4 (electric meter) 1x10^5 (60A 250VAC)
|
| Mechanical | 1x10^5 (electric meter) 1x10^6 | |
Magnetic Latching Relay Applications:
1. Pre-paid power meter
2. Smart control, such as automatization equipment
3. synchronous switch
