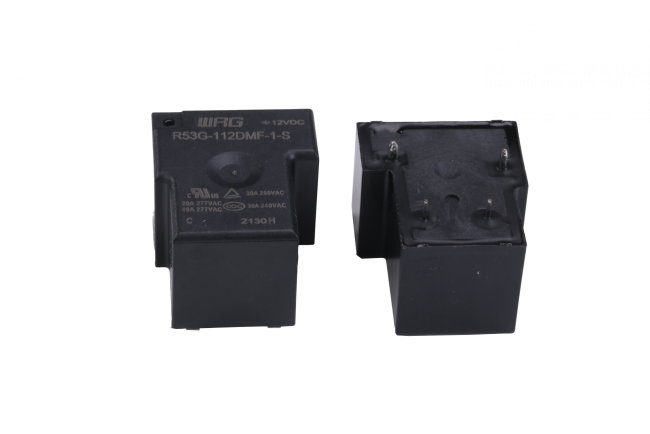

DC 12V 40A Relay 4 Pin R53G-112DMF-1-S 1 Form A Automotive PCB Relay
DC 12V 40A Relay 4 Pin R53G-112DMF-1-S 1 Form A Automotive PCB Relay
PCB Mount Relay Description :
R53 series relay, there are many kinds of pin structures. Like R53xx, it has no dust cover, form A or form C, 4pins or 5pins, rated current max. 30A.R53Gxx, with dust cover, sealed type, rated current max.40A.Stable performance, proper price, used in many kinds of home appliances, and industrial devices.
PCB Mount Relay Features:
1. 1 Form A or C
2. High capacity 40A
3. IEC60335-1 available
4. Class F for coil insulation
PCB Mount Relay Applications:
1. Various home appliance
2. New energy
3. Industry control
4. PC board
5. Automotive lamp controller
PCB Mount Relay Specification:
| Coil data: | |||||||||
| Coil input voltage | 5/9/12/24VDC | ||||||||
| Coil power | D type:450mW,L type:200mW | ||||||||
| Response voltage | ＞75％(Room temp.) | ||||||||
| Drog out voltage | ＜5％(Room temp.) | ||||||||
| Operating time / Release time | Less than 8ms/Less than 5ms | ||||||||
