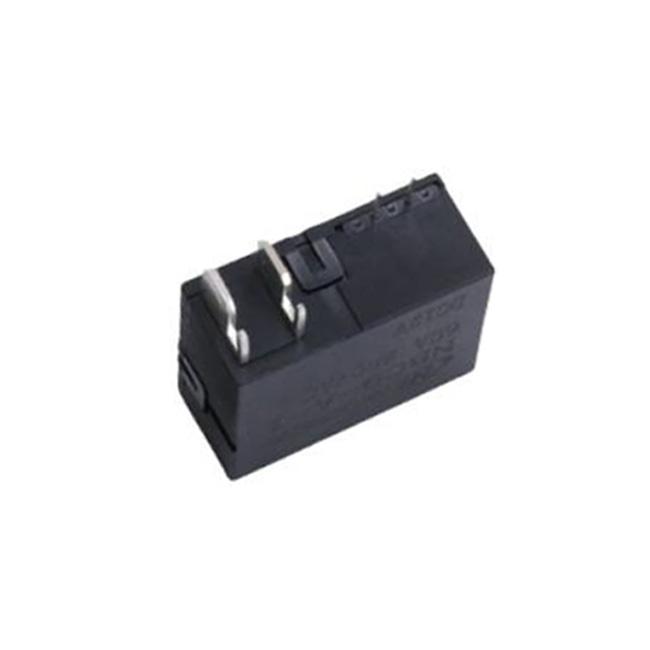

60A 24V DC 2 Coils Magnetic Latching Relay NO NC NBC9-B-60-DC24-2 For Power Meter
60A 24V DC 2 Coils Magnetic Latching Relay NO NC NBC9-B-60-DC24-2 For Power Meter
Magnetic Latching Relay Description:
A magnetic latching relay is a new-type relay developed in recent years, also can be called an automatic switch. It has power saving, stable performance, small size, and big load capacity.NBC9 series is one of them, not only which were mentioned previously, but also an environmental product, special use for smart power meters, such as pre-paid power meters, etc.
Magnetic Latching Relay Applications:
1. Pre-paid power meter
2. Smart control, such as automatization equipment
3. synchronous switch
Magnetic Latching Relay FAQ:
Q1: What is the delivery time like?
A1: If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7days to the destination in China.
Q2: How about after-sales service?
A2: If have any problems, please feel free to contact us by social App, phone call, or e-mail, we would like to solve them and do better for you.
Magnetic Latching Relay Specification:
| Contact Rating | ||
| Contact Form | 1A/1B | |
| Contact Resistance Max | 20mΩ | |
| Contact Material | AgSnO2 AgNi | |
| Contact Load Capacity(Resistance) | 90A 250VAC ,60A/250VAC | |
| Switching Power Max. | 22500VA | |
| Switching Voltage Max. | 250VAC | |
| Switching Current Max. | 90A | |
| Life expectancy | Electrical |
1x10^4 (electric meter) 1x10^5 (60A 250VAC) |
| Mechanical | 1x10^5 (electric meter) 1x10^6 | |
