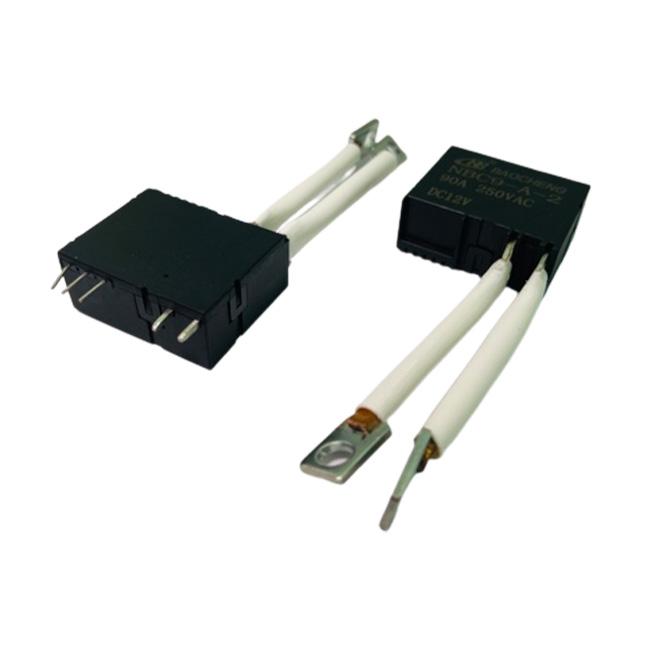

12V DC 90A High Current Dual Coil Latching Relay NBC9-A-2 For Power Meter
DC 90A High Current Dual Coil Latching Relay NBC9-A-2 For Power Meter
Magnetic Latching Relay Description:
A magnetic latching relay is a new-type relay developed in recent years, also can be called an automatic switch. It has power saving, stable performance, small size, and big load capacity.NBC9 series is one of them, not only which were mentioned previously, but also an environmental product, special use for smart power meters, such as pre-paid power meters, etc.
Magnetic Latching Relay Applications:
1. Pre-paid power meter
2. Smart control, such as automatization equipment
3. synchronous switch
Magnetic Latching Relay Specification:
| Coil Rating | |||||||||
| Single Coil (1.5 W) | Double Coil (3.0 W) | ||||||||
| No. |
Coil Voltage |
Pick up (VDC) Max. (70% of Rated Voltage) | Drop out (VDC) Min. (10% of Rated Voltage) | No. | Coil Voltage | Pick up (VDC) Max. (70% of Rated Voltage) | Drop out (VDC) Min.(10% of Rated Voltage) | ||
| Rated | Max. | Rated | Max. | ||||||
| 006 | 6 | 7.8 | 4.2 | 0.6 | 006 | 6 | 7.8 | 4.2 | 0.6 |
| 009 | 9 | 11.7 | 6.3 | 0.9 | 009 | 9 | 11.7 | 6.3 | 0.9 |
| 012 | 12 | 15.6 | 8.4 | 1.2 | 012 | 12 | 15.6 | 8.4 | 1.2 |
| 024 | 24 | 31.2 | 16.8 | 2.4 | 024 | 24 | 31.2 | 16.8 | 2.4 |
| 048 | 48 | 62.4 | 33.6 | 4.8 | 048 | 48 | 62.4 | 33.6 | 4.8 |
