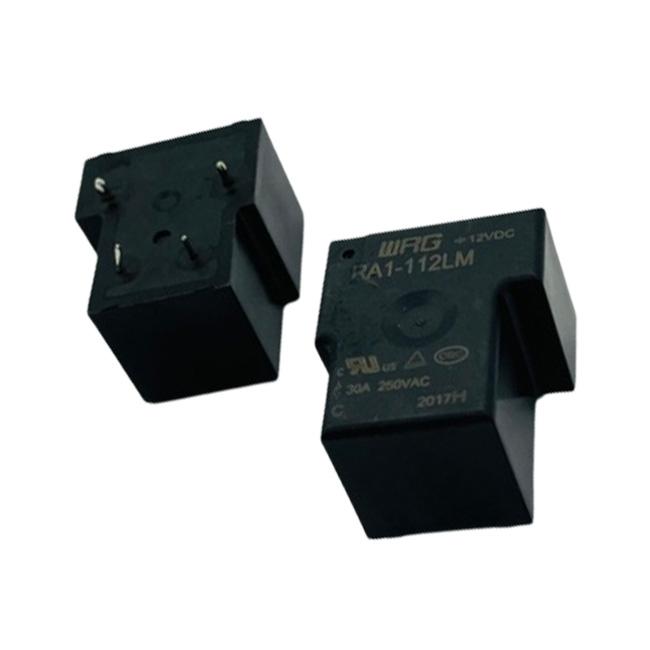

High Power 0.9W 12V DC 30A Relay SPST PCB Mount RA1-112LM For Home Appliance
High Power 0.9W 12V DC 30A Relay SPST PCB Mount RA1-112LM For Home Appliance
30A Power Relay Description:
WRG's RA series is a high capacity, has good endurance, and with Anti-explosion standard general relay. multiple input voltage,4pin or 5pin
for options specially RA5xx has ensured enough insulation distance.
30A Power Relay Features:
1. 4pins,1 form A
2. 30A high capacity
3. reliable and good endurance
4. Meet IEC60079-15 anti-explosion standard
5. 4kv dielectric withstand voltage between coil and contact
30A Power Relay Applications:
1. home appliances, such as lampblack machine, freezer...
2. New energy, such as fast-charging stations for vehicles
30A Power Relay Specification:
| General data: | |||||||||
| Rated withstand impulse voltage | coil contact | 4kV AC/1min | |||||||
| between contact | 1.5kV AC/1min | ||||||||
| Surge voltage | 4kV AC(1.2/50μs) | ||||||||
| Insulation resistance | 1000MΩ(500VDC) | ||||||||
| Vibration | Fault 10-55Hz(amplitude 1.5mm) | ||||||||
| Endurance 10-55Hz(amplitude 1.5mm) | |||||||||
| Shock | Fault 98m/S2 Endurance 980m/S2 | ||||||||
| Operating temperature | -40 ~ 85℃(no condensation) | ||||||||
| Operating humidity | 20 ~ 85％ | ||||||||
| Dimension LxWxH(mm) | 32.0x27.0x20.0 | ||||||||
| Enclosure type | Flux-resistance, sealed | ||||||||
| Mounting | PCB | ||||||||
| Weight(g) | 26 | ||||||||
| Certifications | cULus:E345228/TUV:R50228669/CQC:CQC12002078691 | ||||||||
