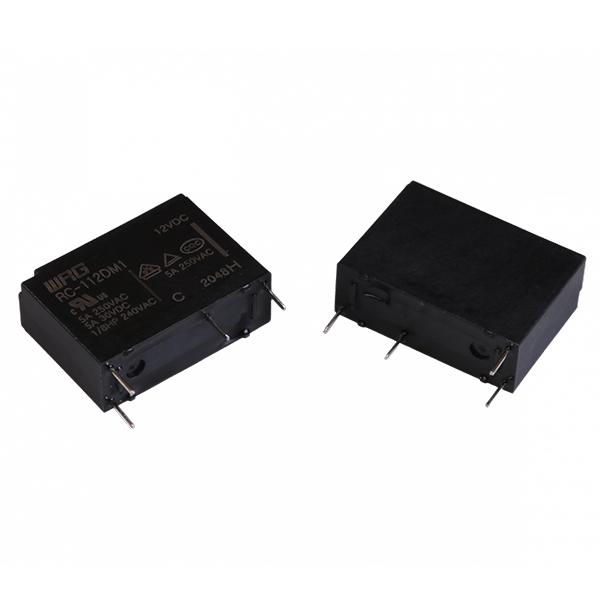

5A SPST PCB Mount Relay 12VDC 4 Pin Power D Micro Power RC - 112DM1 For Car
5A SPST PCB Mount Relay 12VDC 4 Pin Power D Micro Power RC-112DM1 For Car
PCB Mount Relay Description:
RC series is the one which with ultra-slim,7mm width only,3g weight miniature PCB mount power relay. Specially use for which products are small in size, or have a width limit. of 3A to 5A rated current.0.2W coil power, standard 1 form A and A type 1 form A, TUV/UL/CQC/VDE safety certifications, meanwhile, meet with anti-explosion standard, perfectly reply to the small appliance.
PCB Mount Relay Specification:
| Technical Ratings | |
| Insulation Resistance: | 100MΩ |
| Dielectric Strength(Between coil&contact): | 1500VAC |
| Operate Time (Max.): | 15ms |
| Release Time (Max.): | 5ms |
| Ambient Temperature: | -40℃ ~ 85℃/105℃ |
| Terminal Type: | THT |
PCB Mount Relay Introduce:
A relay is an electrical control device, which can give a specified input quantity and maintain it for a long enough time to make a predetermined step change in the controlled quantity in the electrical output circuit. When the input volume is reduced to a certain level and maintained for a long enough time, it returns to the initial state.
