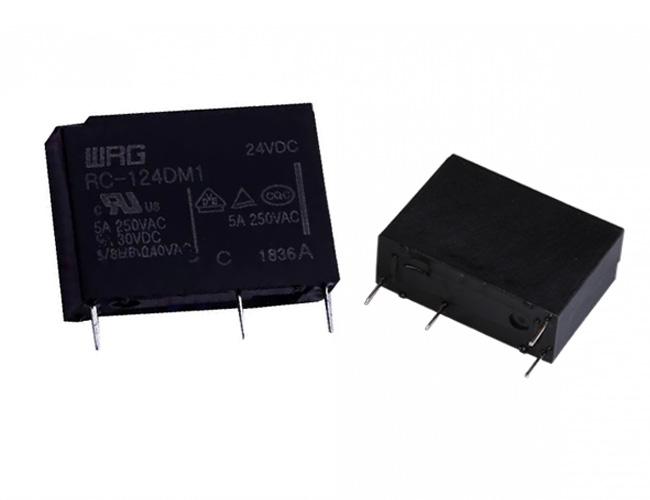

Ultra Thin SPST 5A PCB Mount Relay 24VDC 4 Pin Power D RC - 124DM1 For Dishwasher
Ultra Thin SPST 5A PCB Mount Relay 24VDC 4 Pin Power D RC - 124DM1 For Dishwasher
PCB Mount Relay Description:
RC series is the one which with ultra-slim,7mm width only,3g weight miniature PCB mount power relay. Specially use for which products are small in size, or have a width limit. of 3A to 5A rated current.0.2W coil power, standard 1 form A and A type 1 form A, TUV/UL/CQC/VDE safety certifications, meanwhile, meet with anti-explosion standard, perfectly reply to the small appliance.
PCB Mount Relay Features:
1. flux-resistance
2. SPST, 1 form A, 4pins
3. lightweight, 3g
4. ultra-slim, 7mm width
5. meet with IEC60079-15 anti-explosion standard
PCB Mount Relay Specification:
| Contact data: | |||||||||
| Contact Configuration | 1 Form A | ||||||||
| Contact material | Ag alloy | ||||||||
| Max. switching voltage | 30VDC,277VAC | ||||||||
| Max. switching power | 2,770VA | ||||||||
| Contact ratings | 5A 250VAC,1/3HP 240VAC,5A 277VAC,1/6HP 277VAC | ||||||||
| Contact resistance | Max. 100mΩ(1A/6VDC) | ||||||||
| Mechanical endurance | 1x107 times | ||||||||
| Electrical endurance AC1 | 1x105 times | ||||||||
PCB Mount Relay Introduce:
Relay is an automatic switching element with an isolation function. It is widely used in remote control, telemetry, communication, automatic control, mechatronics, and power electronic equipment. It is one of the most important control elements.
