12V 20A SPST 4pin 1.5KV Dielectric Withstand 922-12VDC - SL - A PCB Mount Relay
12V 20A SPST 4pin 1.5KV Dielectric Withstand 922-12VDC-SL-A PCB Mount Relay

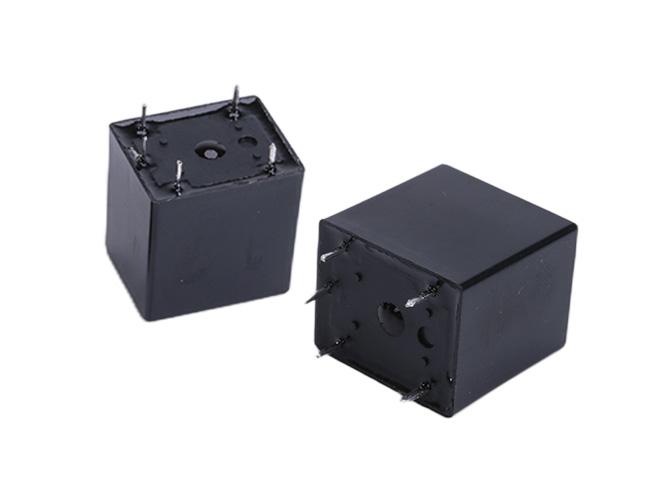

PCB Mount Relay Description:
NBC 922 series automotive relay,5-48V input voltage, maximum current reach 20A, small size, low coil power consumption,1.5KV dielectric withstand voltage between coil and contact,environmental-friendly and PCB board mounting directly, very fit the automotive industry, sound equipment, automatic system, etc. Products are approved by TUV/CQC/UL safety system testing, reliable and safe.
PCB Mount Relay Features:
1. SPST, normal open,4pins
2. rated current 20A
3. class F insulation
4. environmental-friendly
5. dielectric withstands 1.5KV
PCB Mount Relay Specification:
| Contact Ratings | |
| Contact Form: | 1A, 1B, 1C |
| Contact Material: | AgCdO, AgSnO2 |
| Contact Load Capacity: | 20A 277VAC/250VAC/125VAC; 17A 277VAC; 16A 250VAC |
| TV-8 TV-5 120VAC,240VAC | |
| Max. Switching Current: | 20A |
| Max. Switching Power: | 5540VA/480W |
| Mechanical Endurance: | 1*107OPS |
| Electrical Endurance: | 5*104OPS |
