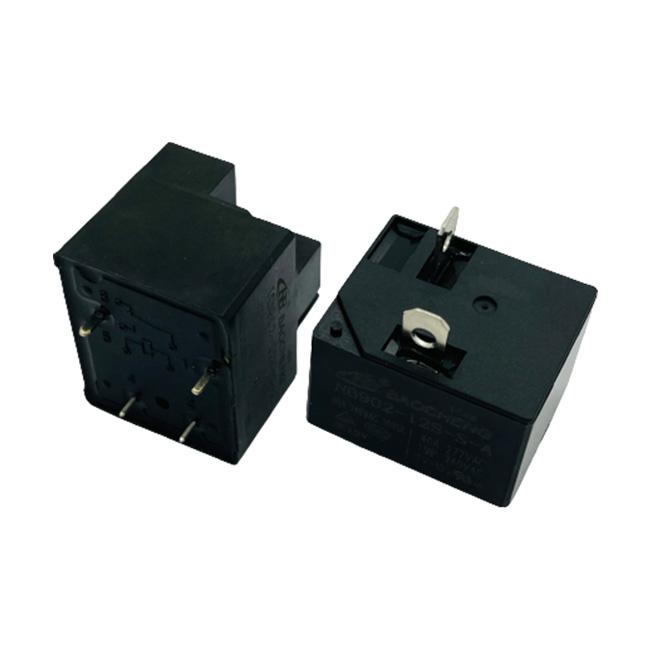

EVSE 12V 40A Power Relay NO. 900mW 2.5KV PCB Mount NB902-12S-S-A
EVSE 12V 40A Power Relay NO. 900mW 2.5KV PCB Mount NB902-12S-S-A
40A Power Relay Features:
1. 2500VAC is available for dielectric to withstand voltage between contact and coil
2. Class F for coil insulation grade
3. environmental-friendly
4. 1 form C,SPST & SPDT
5. TUV/CQC/UL certification
6. complied with RoHS-directive
40A Power Relay Introduce:
Relays generally have induction mechanisms that can reflect certain input variables (such as current, voltage, power, impedance, frequency, temperature, pressure, speed, light, etc.); Actuator; between the input part and the output part of the relay, there is an intermediate mechanism that couples and isolates the input quantity, processes the function and drives the output part.
40A Power Relay Specification:
| General data: | |||||||||
| Rated withstand impulse voltage | coil contact | 4kV AC/1min | |||||||
| between contact | 1kV AC/1min | ||||||||
| Surge voltage | 6kV AC | ||||||||
| Insulation resistance | 1000MΩ(500VDC) | ||||||||
| Vibration | Fault 10-55Hz(amplitude 1.5mm) | ||||||||
| Endurance 10-55Hz(amplitude 1.5mm) | |||||||||
| Shock | Fault 98m/S2 ,Endurance 980 m/s2 | ||||||||
| Operating temperature | -40 ~ 105℃(no condensation) | ||||||||
| Operating humidity | 20 ~ 85％ | ||||||||
| Dimension LxWxH(mm) | 18.2x10.2x15.5 | ||||||||
| Enclosure type | Flux-resistance, sealed | ||||||||
| Mounting | PCB | ||||||||
| Weight(g) | 6 | ||||||||
| Certifications | cULus:E345228/TUV:R50222701/CQC:CQC10002052739 | ||||||||
