SPDT DC 12V 80 Amp Automotive Relay BM94-12VDC-A-B-S For ECSE
Price:
negotiable
MOQ:
100pcs
Delivery Time:
4weeks
Brand:
NBC
Product Description

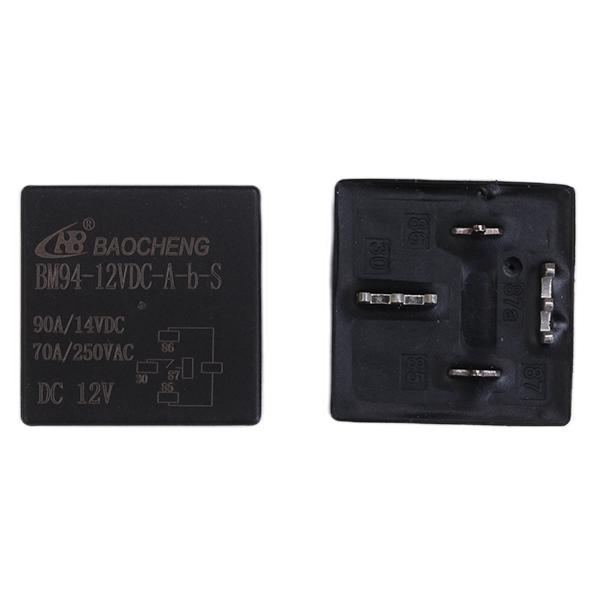

SPDT DC 12V 80 Amp Automotive Relay BM94-12VDC-A-B-S For ECSE
Universal Automotive Relay Description:
BM94 series universal automotive relay has a large switching capacity, maximum can reach 80A, DC6V-DC24V input, Various mounting terminals available,dust-proof feature, NO., NC., NO. & NC. contact to option, reliable and environmental-friendly, especially use for the automobile industry.
Universal Automotive Relay Feature:
1. coil power consumption 1.6W or 1.9W for options
2. Class F for coil insulation grade
3. rated current max.80A
4. various mounting terminals available
Universal Automotive Relay introduces:
Relays generally have induction mechanisms that can reflect certain input variables (such as current, voltage, power, impedance, frequency, temperature, pressure, speed, light, etc.); Actuator; between the input part and the output part of the relay, there is an intermediate mechanism that couples and isolates the input quantity, processes the function and drives the output part.
Universal Automotive Relay Technical Rating:
| Insulation Resistance | 100MQ(500VDC)Min. | |
| Dielectric Strength | Between Open Contacts | 500VAC 50Hz |
| Between Contact and Coil | 4000VAC 50Hz | |
| Shock Resistance | Operation extremes 10G, Damage limits 100G | |
| Vibration Resistance | Operation extremes 10-500Hz,4.4G, Damage limits 10-500Hz, 4.4G | |
| Ambient Temperature | -40°C ~ 85°C | |
| Relative Humidity | 85% (20°C ) | |
| Weight | 6g | |
