12V 40 Amp SPST Universal Automotive Relay Sealed Type BM940-A-S For Car Lamp
Price:
negotiable
MOQ:
100pcs
Delivery Time:
4weeks
Brand:
NBC
Product Description

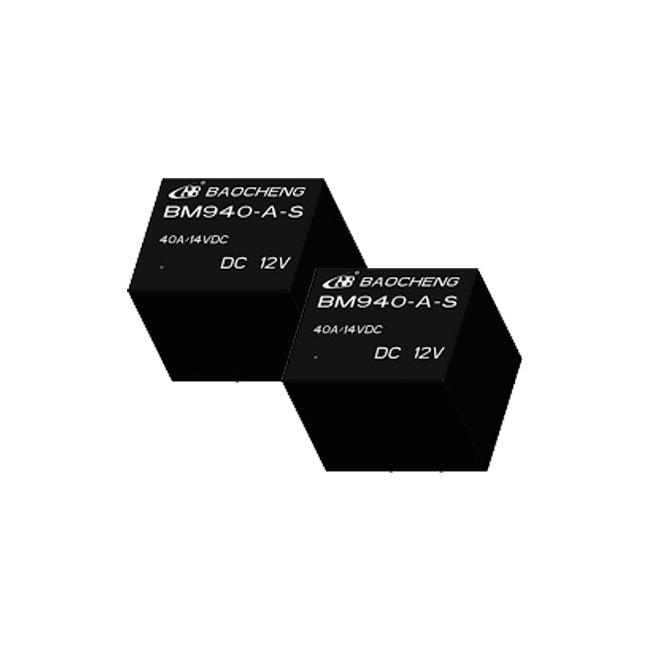

12V 40 Amp SPST Universal Automotive Relay Sealed Type BM940-A-S For Car Lamp
Universal Automotive Relay Description:
BM940 series universal automotive relay has a large contact load, and a rated current is 40A, but the maximum is 45A at 14VDC, which can suffer a big inrush current. Small size, PCB mounting,11mm pin pitch for EU type,8mm pin pitch for USA type, SPST and SPDT to option, especially use in automatic control equipment and automobile industry.
Universal Automotive Relay Feature:
1. size 26.8*21.5*22.3mm, only 19g
2. SPST or SPDT,11mm or 8mm pin pitch for option
3. rated current 40A
4. sealed,dust-proof or open type to select
Universal Automotive Relay introduces:
Relays generally have induction mechanisms that can reflect certain input variables (such as current, voltage, power, impedance, frequency, temperature, pressure, speed, light, etc.); Actuator; between the input part and the output part of the relay, there is an intermediate mechanism that couples and isolates the input quantity, processes the function and drives the output part.
Universal Automotive Relay Technical Rating:
| Insulation Resistance | 100MQ(500VDC)Min. | |
| Dielectric Strength | Between Open Contacts | 500VAC 50Hz |
| Between Contact and Coil | 4000VAC 50Hz | |
| Shock Resistance | Operation extremes 10G, Damage limits 100G | |
| Vibration Resistance | Operation extremes 10-500Hz,4.4G, Damage limits 10-500Hz, 4.4G | |
| Ambient Temperature | -40°C ~ 85°C | |
| Relative Humidity | 85% (20°C ) | |
| Weight | 6g | |
