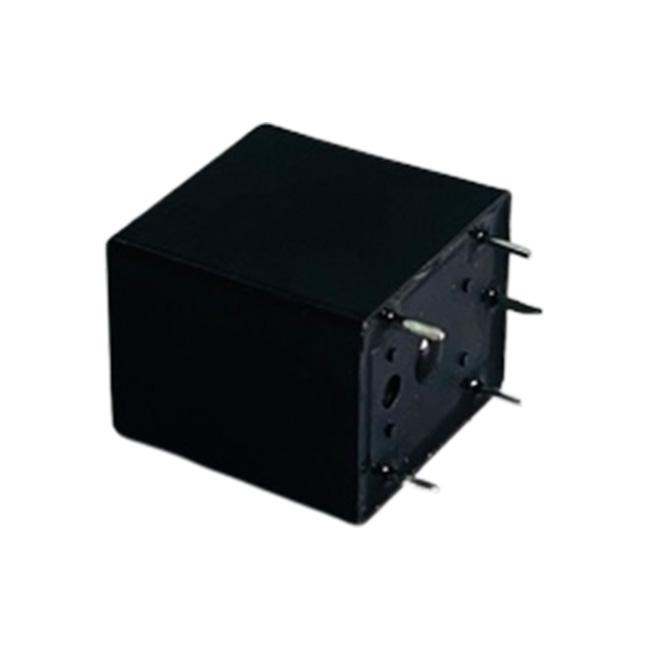

SPST Sealed PCB Universal Automotive Relay 12V 30A For EV Charging Station
SPST Sealed PCB Universal Automotive Relay 12V 30A For EV Charging Station
Universal Automotive Relay Description:
MK series universal automotive relay is a compact, light, and microminiature relay. It has a large contact load, a rated current that can reach 30A,
extended temperature range up to 105℃, Form A or Form C to option, sealed or flux-resistance to select. At the same time, it is environmental
friendly product, suitable for car windshield wipers, automatic doors or windows, car central door locks...
Universal Automotive Relay Feature:
1. lightweight, only 3g
2. SPST or SPDT
3. microminiature size,12*12.8*9.8mm
4. big capacity, maximum 30A
5. flux-resistance or sealed
Universal Automotive Relay introduces:
A relay is an electrical control device, which can give a specified input quantity and maintain it for a long enough time to make a predetermined step change in the controlled quantity in the electrical output circuit. When the input volume is reduced to a certain level and maintained for a long enough time, it returns to the initial state.
Universal Automotive Relay Technical Rating:
| Insulation Resistance: | 100MΩ |
| Dielectric Strength(Between coil&contact): | 500VAC |
| Operate Time (Max.): | 10ms |
| Release Time (Max.): | 7ms |
| Ambient Temperature: | -40℃ ~105℃ |
| Terminal Type: | THT & Plug-In |
