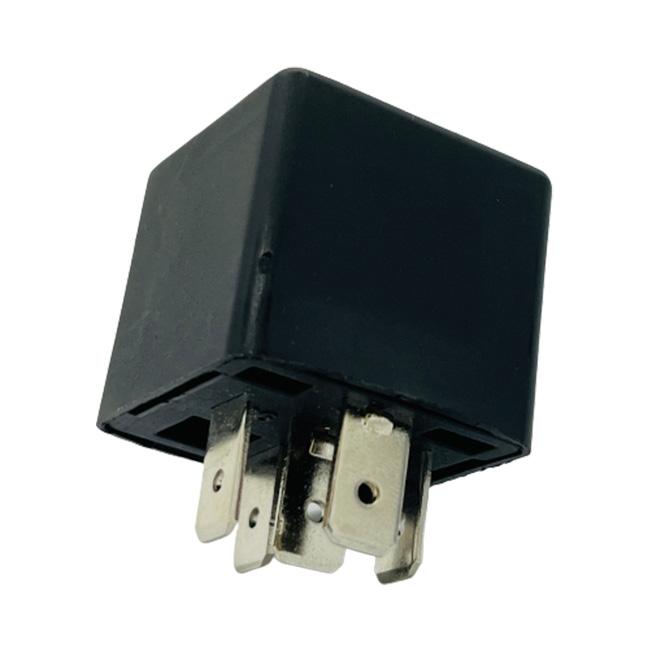

12V 80A Automotive Relay SPDT Sealed BM94 - 12VDC - C - B - S For Windshield Wiper
12V 80A Automotive Relay SPDT Sealed BM94 - 12VDC - C - B - S For Windshield Wiper
Universal Automotive Relay Description:
BM94 series universal automotive relay has a large switching capacity, maximum can reach 80A, DC6V-DC24V input, Various mounting terminals available,dust-proof feature, NO., NC., NO. & NC. contact to option, reliable and environmental-friendly, especially use for the automobile industry.
Universal Automotive Relay Feature:
1. coil power consumption of 1.6W or 1.9W for options
2. Class F for coil insulation grade
3. environmental-friendly
Universal Automotive Relay introduces:
A relay is an electrical control device, which can give a specified input quantity and maintain it for a long enough time to make a predetermined step change in the controlled quantity in the electrical output circuit. When the input volume is reduced to a certain level and maintained for a long enough time, it returns to the initial state.
Universal Automotive Relay Technical Rating:
| Insulation Resistance: | 100MΩ |
| Dielectric Strength(Between coil&contact): | 500VAC |
| Operate Time (Max.): | 10ms |
| Release Time (Max.): | 7ms |
| Ambient Temperature: | -40℃ ~105℃ |
| Terminal Type: | THT & Plug-In |
