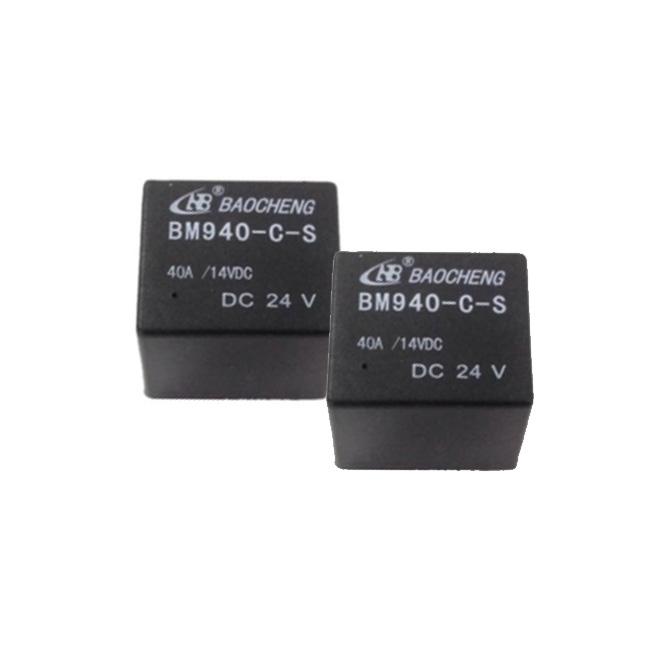

PCB Mount 12VDC 40A Automotive Relay SPDT Sealed BM940 - C - S For Car Flasher
PCB Mount 12VDC 40A Automotive Relay SPDT Sealed BM940-C-S For Car Flasher
Universal Automotive Relay Description:
BM940 series universal automotive relay has a large contact load, and the rated current is 40A, but the maximum is 45A at 14VDC, which can suffer a big inrush current. Small size, PCB mounting,11mm pin pitch for EU type,8mm pin pitch for USA type, SPST and SPDT to option, especially use in automatic control equipment and automobile industry...
Universal Automotive Relay Features:
1. size 26.8*21.5*22.3mm, only 19g
2. SPST or SPDT,11mm or 8mm pin pitch for option
3. rated current 40A
4. sealed,dust-proof or open type to select
Universal Automotive Relay Applications:
1. Industry control
2. automobile industry
Universal Automotive Relay Technical Rating:
| Insulation Resistance: | 100MΩ |
| Dielectric Strength(Between coil&contact): | 750VAC |
| Operate Time (Max.): | 5ms |
| Release Time (Max.): | 3ms |
| Ambient Temperature | -40℃ ~ 125℃ |
| Terminal Type: | THT |
Universal Automotive Relay Coil Rating:
| Nominal Voltage | (6-24)VDC |
| Nominal Coil Power | 1.6W,1.9W |
