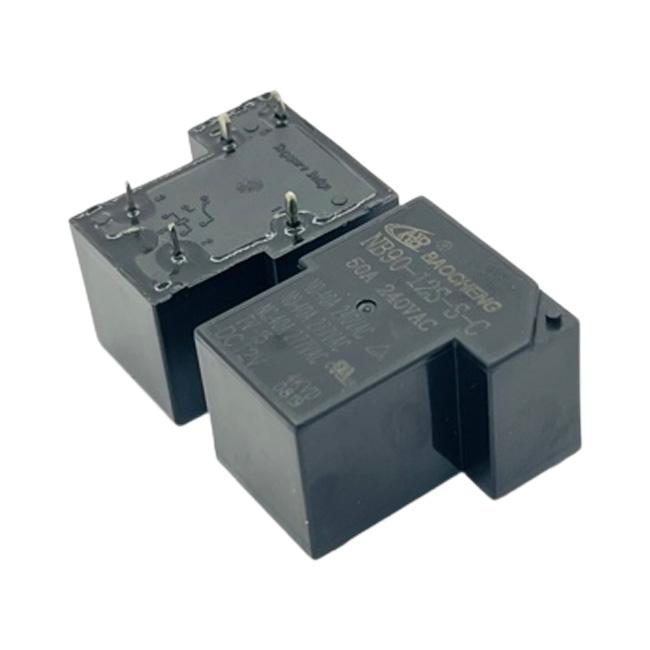

EV Charger Sealed DC 12V 50A Relay SPDT 2.5KV PCB Mount NB90-12S-S-C

12V 50A Relay Description:
New energy products, like electric vehicles, must be a trend in the next few days. So more and more fast-charging stations are made and satisfy the need for electric cars' power-charging.NB90 series AC relay is specially applied to the charging point. It is a high switching capacity for contacts, is a dust-proof or sealed type option, and is environmentally friendly.


12V 50A Relay Features:

1. Using brass pins so that it comply with Europe standard

2. 4000VAC for dielectric withstand voltage between contact and coil

3. Sealed-type

4. SPDT & SPST

5. Rated current max 50A

6. 900mW or 1.2W

7. TUV/CQC/UL certification

12V 50A Relay Designation:

1. NB90:Model No. (Max. contact load capacity 50A).

2. A: Contact Form: A: Normally Open B: Normally Close C: SPDT(NO&NC).

3. W: white None: black.

4. 4KV: Between contact and coil dielectric withstand voltage 4KV, None: 2500V.

5. T-105℃: ambient temperature 105℃. None: normal temperature resistant.

6. X: Customer code.

1. Using under a clean environment(excluding H2S, SO2, NO2, and dust contaminants), a dust-proof type is recommended；

Using under polluted environment(containing H2S, SO2, NO2, dust contaminants), a sealed type is recommended, and please contact us during practical application；

2. Avoid using it under strong magnetic or shock extremes conditions, or the technical rating will be changed.


12V 50A Relay Specification:
