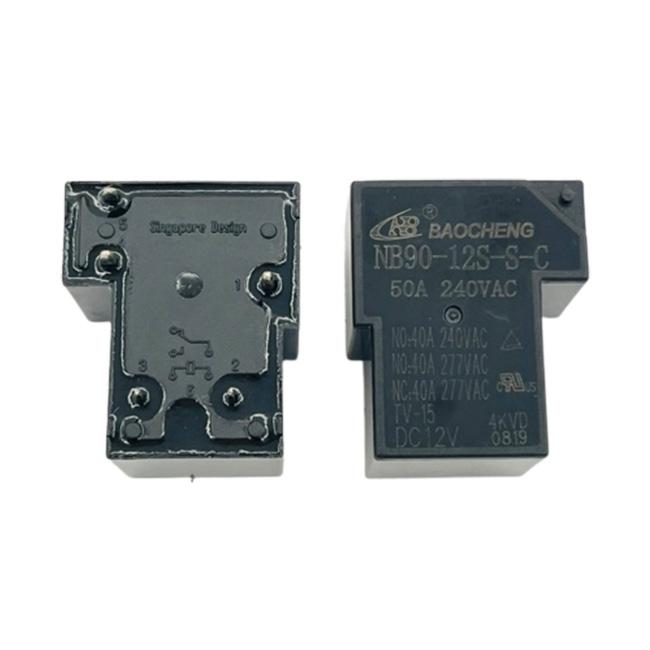

Sealed PCB Mount 24V 12V 50A Relay SPDT 2.5KV NB90-24S-S-C For EV Charging Pile

Sealed PCB Mount 24V 12V 50A Relay SPDT 2.5KV NB90-24S-S-C For EV Charging Pile

12V 50A Relay Features:

1. 4000VAC for dielectric withstand voltage between contact and coil

2. Sealed-type

3. SPDT & SPST

4. Rated current max 50A

5. 900mW or 1.2W

6. TUV/CQC/UL certification

12V 50A Relay Introduce:

A relay is an electrical control device, which can give a specified input quantity and maintain it for a long enough time to make a predetermined step change in the controlled quantity in the electrical output circuit. When the input volume is reduced to a certain level and maintained for a long enough time, it returns to the initial state.

12V 50A Relay Note:

1. Using under a clean environment(excluding H2S, SO2, NO2, and dust contaminants), a dust-proof type is recommended；

Using under polluted environment(containing H2S, SO2, NO2, dust contaminants), a sealed type is recommended, and please contact us during practical application；

2. When assembly on PCB, it needs to be completely washed, please inform us before ordering, so as to provide the proper types;

3. If the dielectric strength between the coil & contacts has to be over 2500VAC, please inform us before ordering, so as to provide the proper types.

4. Avoid using it under strong magnetic or shock extremes conditions, or the technical rating will be changed.

12V 50A Relay Specification:
