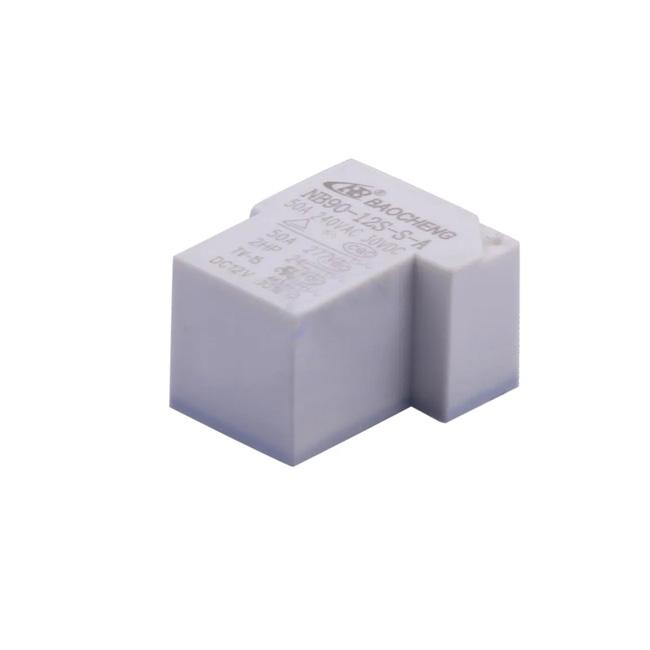

SPDT 24V 12V 50A Relay PCB Mount 2.5KV Sealed NB90-24S-S-A For EV Charging Point
SPDT 24V 12V 50A Relay PCB Mount 2.5KV Sealed NB90-24S-S-A For EV Charging Point
12V 50A Relay Description:
New energy products, like electric vehicles, must be a trend in the next few days. So more and more fast-charging stations are made and satisfy the need for electric cars power-charging.NB90 series AC relay is specially applied to the charging point. It is a high switching capacity for contacts, is a dust-proof or sealed type option, and is environmentally friendly.
12V 50A Relay Features:
1. 4000VAC or 2500VAC is available for dielectric to withstand voltage between contact and coil
2. Class F for coil insulation grade
3. Sealed-type or open-type for options
4. SPDT & SPST
5. Rated current max 50A
6. 900mW or 1200mW
7. TUV/CQC/UL certification
12V 50A Relay Designation:
NB90 - 12S - S - A W 4KV T-105℃ X
1. NB90:Model No. (Max. contact load capacity 50A)
2. 12:Coil Rated Voltage:5V,6V,9V,12V,15V,18V,24V,48V,110V(DC)
3. S: Package: S: Sealed D: Dustproof
4. S: Contact Material:AgSno2
5. 4KV: Between contact and coil dielectric withstand voltage 4KV, None: 2500V
6. T-105℃: ambient temperature 105℃. None: normal temperature resistant
7. X: Customer code
12V 50A Relay Note:
1. When assembly on PCB, it needs to be completely washed, please inform us before ordering, so as to provide proper types;
2. If the dielectric strength between the coil & contacts has to be over 2500VAC, please inform us before ordering, so as to provide the proper types.
3. Avoid using it under strong magnetic or shock extremes conditions, or the technical rating will be changed.
12V 50A Relay Specification:
| Coil data: | |||||||||
| Coil input voltage | 5/9/12/24VDC | ||||||||
| Coil power | D type:450mW,L type:200mW | ||||||||
| Response voltage | ＞75％(Room temp.) | ||||||||
| Drog out voltage | ＜5％(Room temp.) | ||||||||
| Operating time / Release time | Less than 8ms/Less than 5ms | ||||||||
