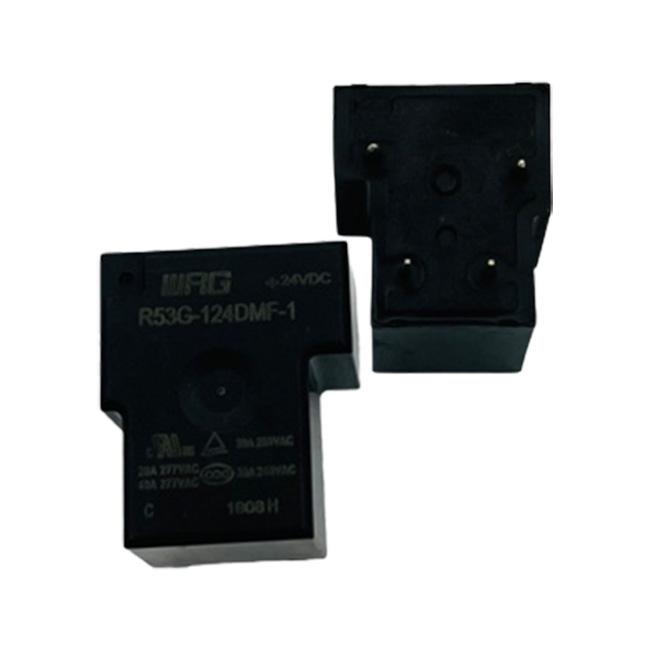

4 Pin sealed Relay 24VDC 30A SPST R53G-124DMF-1 For Electric Power Meter
24 Volt 30 Amp SPST 4pins Class F Insulation Pcb Mount Relay R53G-124DMF-1-S 30A Power Relay for Electric Power Meter
30A Power Relay Description:
WRG's RA series is a high capacity, has good endurance, and with Anti-explosion standard general-purpose relay. Multiple input voltage,4pin
or 5pin for options, multiple pin structures, and various mounting methods, available to different user applications.
30A Power Relay Features:
1. 4pins,1 form A
2. 30A high capacity
3. reliable and good endurance
4. Meet IEC60079-15 anti-explosion standard
5. 4kv dielectric withstand voltage between coil and contact
30A Power Relay Applications:
1. home appliances, such as lampblack machine, freezer...
2. New energy, such as fast-charging stations for vehicles
30A Power Relay Specification:
| Contact Configuration | 1 Form A | ||||||||
| Contact material | Ag alloy | ||||||||
| Max. switching voltage | 30VDC,277VAC | ||||||||
| Max. switching power | 2,770VA | ||||||||
| Contact ratings | 5A 250VAC,1/3HP 240VAC,5A 277VAC,1/6HP 277VAC | ||||||||
| Contact resistance | Max. 100mΩ(1A/6VDC) | ||||||||
| Mechanical endurance | 1x10^7 times | ||||||||
| Electrical endurance AC1 | 1x10^5 times |
