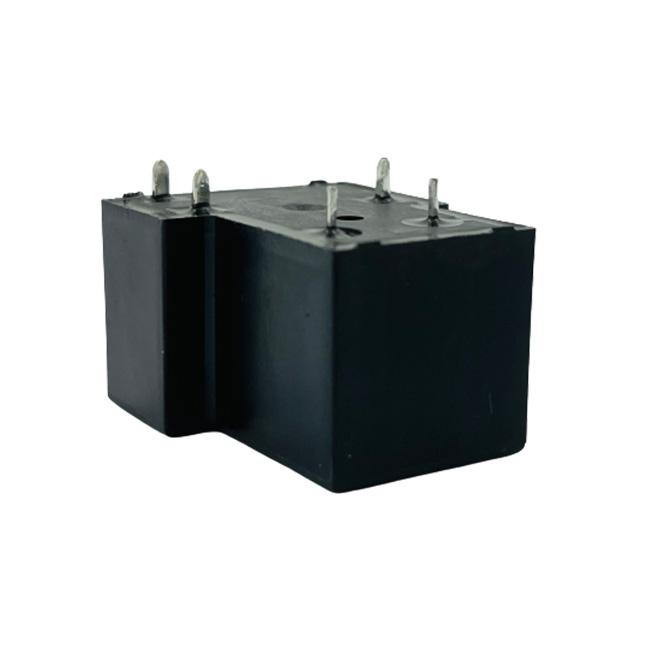

1W 5 Pin 12V 30A Power Relay NO. SPDT PCB Mount RA1-112D For Oil Pump
1W 5 Pin 12V 30A Power Relay NO. SPDT PCB Mount RA1-112D For Oil Pump
30A Power Relay Description:
WRG's RA series is a high capacity, has good endurance, and with Anti-explosion standard general relay. multiple input voltage,4pin or 5pin
for options specially RA5xx has ensured enough insulation distance.
30A Power Relay Features:
1. high capacity 30A, high endurance
2. 1 form A/B available
3. enough insulation distance for the control switch for RA5xxx
4. meet with IEC60079-15 anti-explosion standard
5. multiple mounting ways, like PCB mounting, QT 250, or 187 terminal
30A Power Relay Applications:
1. various home appliance
2. new energy, such as fast-charging stations for electric vehicles
3. industry control, PLC or CNC...
30A Power Relay Specification:
| Contact Ratings | |
| Contact Form: | 1A, 1B, 1C |
| Contact Material: | AgCdO, AgSnO2 |
| Contact Load Capacity: | 20A 277VAC/250VAC/125VAC; 17A 277VAC; 16A 250VAC |
| TV-8 TV-5 120VAC,240VAC | |
| Max. Switching Current: | 20A |
| Max. Switching Power: | 5540VA/480W |
| Mechanical Endurance: | 1*10^7 OPS |
| Electrical Endurance: | 5*10^4 OPS |
