Water Heater 12 Volt 30A Power Relay NO. PCB Mount QT 250 RA2-112LM
Water Heater 12 Volt 30A Power Relay NO. PCB Mount QT 250 RA2-112LM
30A Power Relay Description:

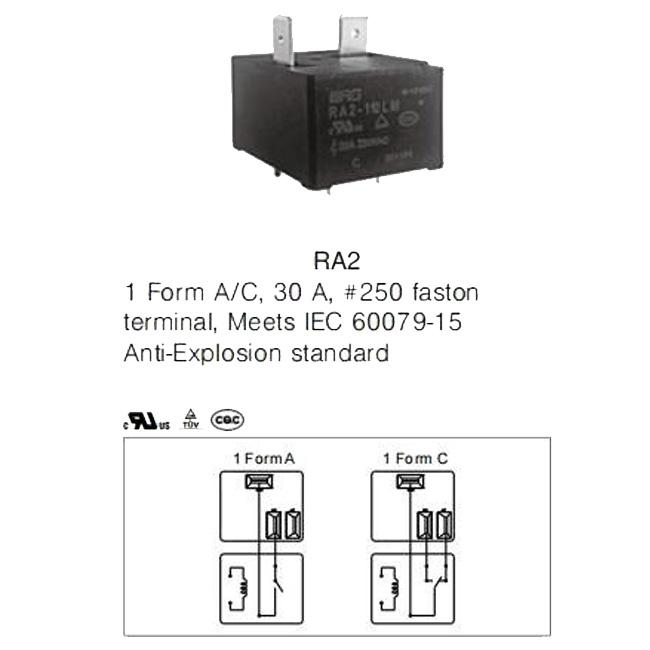

With WRG's RA2-112LM power relay, we can know some features from the model name.RA2 mean it is PCB mount and fast connection with 250 terminal for connection.112 represent 1 contact form, DC12V, L means 900mW, and M means is normally open. Its rated current is 30A for the maximum.
30A Power Relay Features:
1. 1 form A/C available, rated current 30A
2. Meet IEC60079-15 anti-explosion standard
3. Multiple mounting ways, PCB mounting, and QT 250 terminal
4. Sealed or full-resistance to select
30A Power Relay Applications:
1. Various home appliances, such as water heaters of the Haier brand, and air conditioners of the Midea brand
2. New energy, such as fast-charging stations for vehicles
3. Industry control
30A Power Relay Specification:
| Contact Form | 1A ,1B, 1C | |
| Contact material | AgSnO2 | |
| Contact Rating (Resistive) | NO:10A 125VAC 7A 250VAC 5A 250VAC NO:20A 14VDC | |
| NC:10A 125VAC 7A 250VAC 5A 250VAC | ||
| Switching Power Max. | 280W 1250VA | |
| Switching Voltage Max. | 30VDC 125VAC | |
| Switching Current Max. | 20 A | |
| Voltage Drop | ≤50mV ( @10A) Item 3.12 of IEC 255-7 | |
| Endurance | Electrical | 105 Item 3.30 of IEC 255-7 |
| Mechanical | 107 Item 3.31 of IEC 255-7 | |
