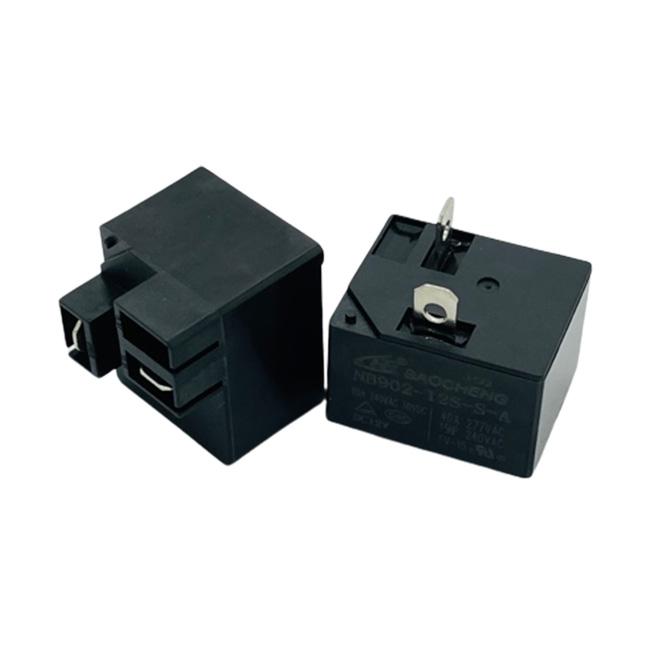

PCB Mount M4 Bolt 30A Power Relay 1 Form A NB902E-12S-S-A 12V 4 Pin Relay

30A Power Relay Features:

1. 4000VAC for dielectric withstand voltage between contact and coil

2. Sealed-type

3. SPDT & SPST

4. Rated current max 40A

5. 900mW

6. TUV/CQC/UL certification

30A Power Relay Applications:

1. Electric vehicle supply equipment

2. Special design for water heater, air conditioner, and automatic control system

30A Power Relay Note:

1. Applying under a clean environment(excluding H 2 S, SO2, NO2, dust contaminants), dust-proof type is recommended; Applying under a polluted environment(containing H 2 S, SO2, NO2, dust contaminants), sealed type is recommended, and please confirm during practical applying；
2. When installed on PCB, and entire washing is needed, please notify us before ordering, so as to provide proper items;
3. If dielectric strength between coil&contacts has to be over 2500VAC, please notify us before ordering, so as to provide proper items;

4. Avoid using it under strong magnetic or shock extremes conditions, or the technical rating will be changed.
