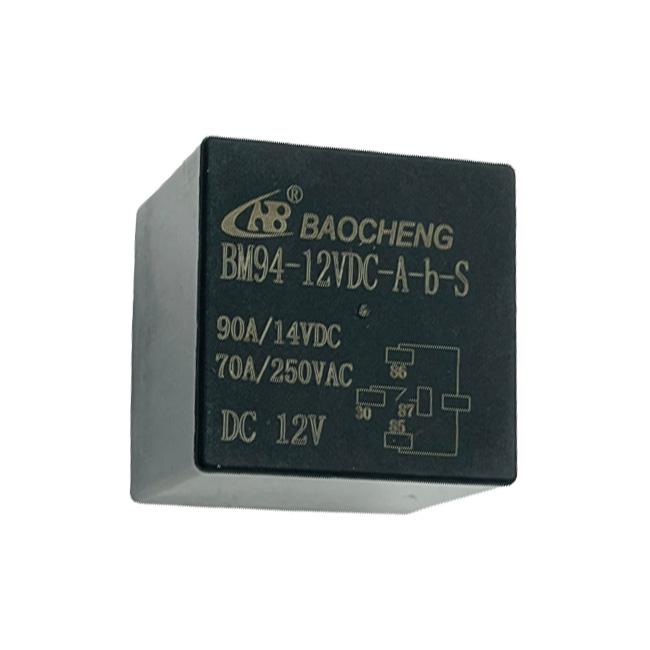

Charger Grant SPST 1.6W 12V 50A Relay Sealed PCB Mount BM94-12VDC-A-B-S
Charger Grant SPST 1.6W 12V 50A Relay Sealed PCB Mount BM94-12VDC-A-B-S
12V 50A Relay Description:
BM94 series universal automotive relay has a large switching capacity, maximum can reach 80A, DC6V-DC24V input, various mounting terminals available,dust-proof feature, NO., NC., NO. & NC. contact to option, reliable and environmental-friendly, especially use for the automobile industry.
12V 50A Relay Features:
1. coil power consumption 1.8W or 2.2W for options
2. Class F for coil insulation grade
3. environmental-friendly
4. rated current max.80A
5. SPST or SPDT
12V 50A Relay FAQ:
Q1: What is the delivery time like?
A1: If we have no stocks, usually have a one-month lead time, If we have stocks, will ship them in 3-7days to the destination in China.
Q2: How about after-sales service?
A2: If have any problems, please feel free to contact us by social App, phone call, or e-mail, we would like to solve them and do better for you.
12V 50A Relay Technical Rating:
| Insulation Resistance: | 100MΩ |
| Dielectric Strength(Between coil&contact): | 500VAC |
| Operate Time (Max.): | 7ms |
| Release Time (Max.): | 5ms |
| Ambient Temperature | -40℃ ~ 125℃ |
| Terminal Type: | THT&Plug-In |
