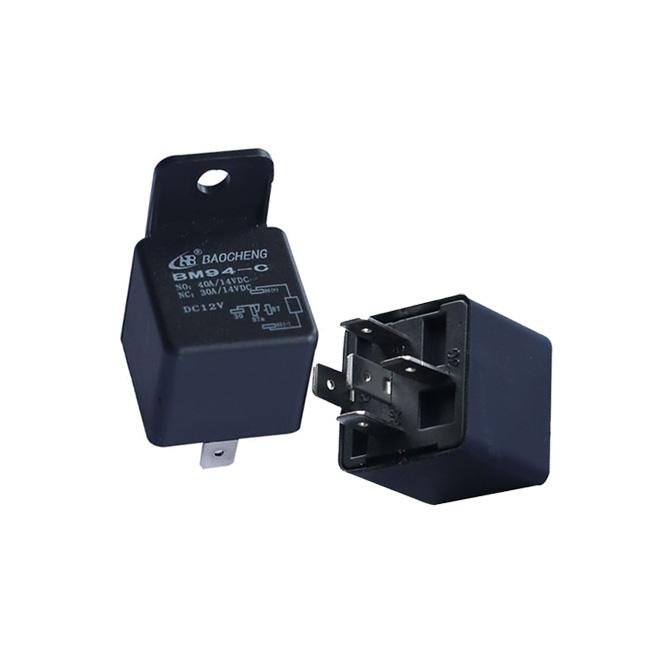

Class F NO. NC. DC 12V 50A Relay Dustproof Cover For Electric Vehicle
Class F NO. NC. DC 12V 50A Relay Dustproof Cover For Electric Vehicle
12V 50A Relay Description:
BM94 series universal automotive relay has a large switching capacity, maximum can reach 80A, DC6V-DC24V input, Various mounting terminals available,dust-proof feature, NO., NC., NO. & NC. contact to option, reliable and environmental-friendly, especially use for the automobile industry.
12V 50A Relay Features:
1. coil power consumption 1.8W or 2.2W for options
2. Class F for coil insulation grade
3. environmental-friendly
4. rated current max.80A
5. SPST or SPDT
6. various mounting terminals available
12V 50A Relay Note:
1. When assembly on PCB, it needs to be completely washed, please inform us before ordering, so as to provide proper types;
2. If the dielectric strength between the coil & contacts has to be over 2500VAC, please inform us before ordering, so as to provide the proper types.
3. Avoid using it under strong magnetic or shock extremes conditions, or the technical rating will be changed.
12V 50A Relay Contact Ratings:
| Contact Form: | 1A, 1B, 1C |
| Contact Material: | AgSnO2 |
| Contact Load Capacity: | 1A: 80A/14VDC |
| 1B: 60A/14VDC | |
| 1C: 80A/14VDC; 60A/14VDC | |
| Max. Switching Current: | 80A |
| Max. Switching Power: | 1120W |
| Mechanical Endurance: | 1*107OPS |
| Electrical Endurance: | 1*105OPS |
