Creep Resistant TZM Molybdenum Boat For Glass Melting Furnace Molybdenum Sintered Boat Moly Alloy Boat Evaporation Boat

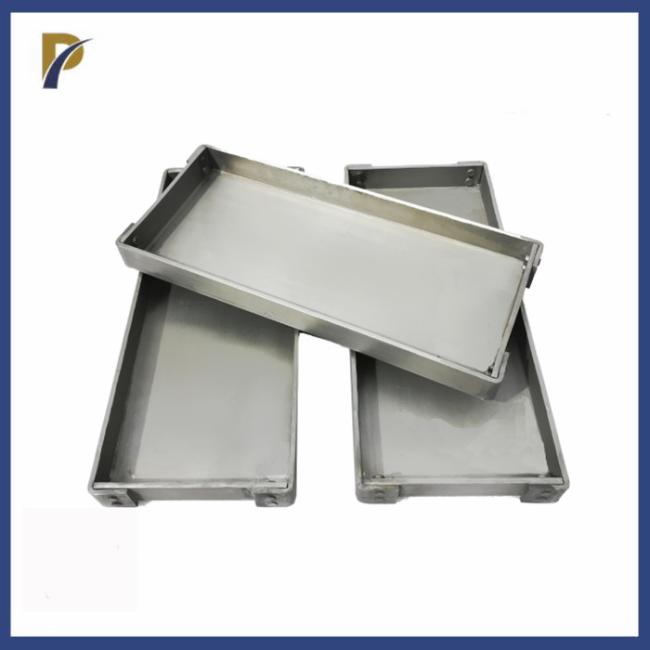

Creep-Resistant Molybdenum Boat For Glass Melting Furnace
1. Description of Molybdenum Boat For Glass Melting Furnace:
Molybdenum can withstand extremely high temperatures and is easy to process, and can be prepared into molybdenum boats—a high-temperature-resistant container that is widely used in vacuum furnaces and glass melting furnaces.It is less expensive and has a simpler construction than molybdenum crucibles. The molybdenum boats produced by Fenghua Qisheng have excellent dimensional stability, corrosion resistance and creep resistance, and have the advantages of long service life and not easy to deform. Boats made of molybdenum-lanthanum are also available with improved ductility and creep resistance. The molybdenum boat can avoid premature embrittlement or fracture by doping a tiny amount of lanthanum oxide (0.3%–0.7%) into pure molybdenum. This method has a more stable microstructure and greater recrystallization temperature.
2. Specification of Molybdenum Boat For Glass Melting Furnace:

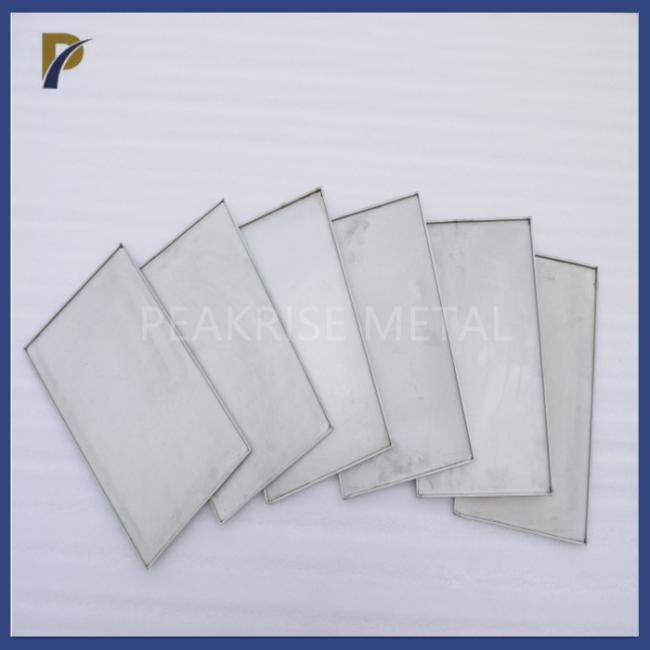

Molybdenum boat ,Molybdenum tray
Material: Mo1,TZM,MoLa
Size: According to customer's drawing.
Surface:Alkaline washing
| Purity | 99.95% |
| Shape | Round, Rectangular, Square, Trapezoidal, and etc. |
| Density | 10.2 g/cm3 |
3. Classification of Molybdenum Boat For Glass Melting Furnace:
- Bending, Folding
- Welding
- Riveting
- Precision Machining
- Drilling
- Sintered
4. Chemical Content of Molybdenum Boat For Glass Melting Furnace:
| Grade | Main chemical content% | Impurity content(<%) | |||||||||
| Mo | Ti | Zr | C | La2O3 | C | 0 | N | Fe | Ni | Si | |
| Mo1 | Remain | — | — | — | — | 0.01 | 0.007 | 0.002 | 0.01 | 0.002 | 0.01 |
| TZM | Remain | 0.40~0.55 | 0.06~0.12 | 0.01~0.04 | — | — | 0.03 | 0.002 | 0.01 | 0.005 | 0.005 |
| MoLa | Remain | — | — | — | 0.4~1.2 | 0.01 | — | 0.002 | 0.01 | 0.002 | 0.01 |
5. Why choose us?
The tungsten boat and molybdenum boat are processed by our company's high-quality tungsten sheet and molybdenum sheet. The thickness of the sheet is good. After vacuum annealing, it is resistant to deformation and easy to bend. Our company's boats have the advantages of stable resistance, high temperature resistance, less chemical impurity pollution, accurate size, consistent surface color, firmness and not easy to deform. Our company has machining centers and precision shears, laser cutting, water jet cutting, and large-scale bending equipment, and can produce different types of tungsten boats, molybdenum boats, and alloy boats according to customer needs.
6. Application of Molybdenum Boat For Glass Melting Furnace:
Molybdenum boats are widely used in nuclear fuel sintering, vacuum evaporation, coating technology, electronics industry, power engineering, capacitor sintering, thermocouple shells, etc.
Molybdenum boats are often used in high-temperature heat treatment industries, such as vacuum furnaces, glass melting furnace ,ammonia furnaces, industrial furnaces and other high-temperature furnaces as material-containing melters.
Components for nuclear power and energy.
Industrial high temperature furnace refractory parts.
