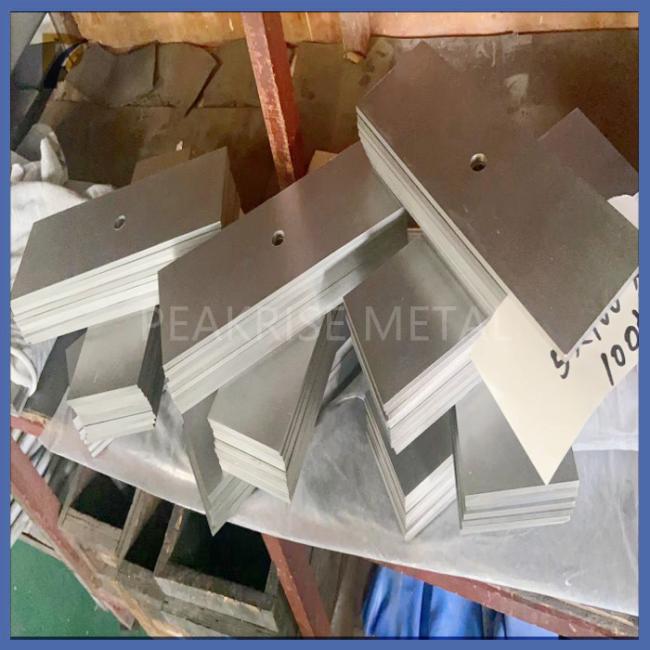

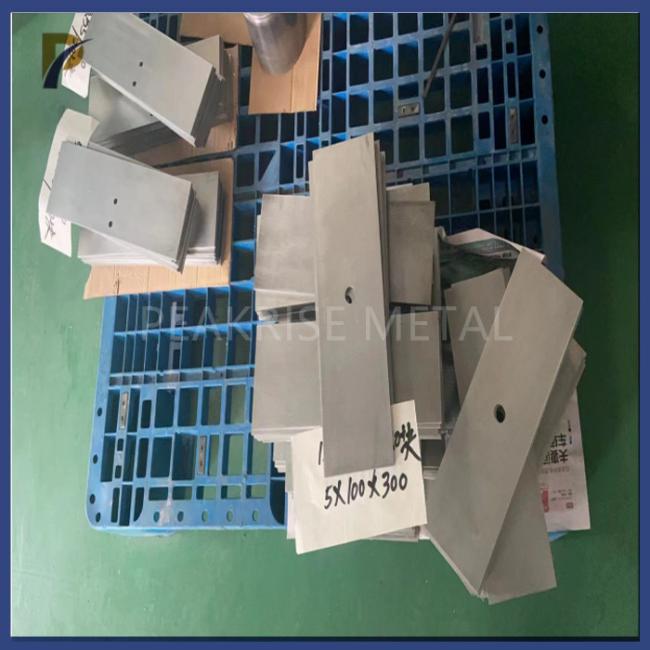

99.95% Polished Molybdenum Electrode Plate For Glass And Rare Earth Industry
Molybdenum Electrode Plate For Glass And Rare Earth Industry 99.95% Polished Molybdenum Plate
1. Summary Of Molybdenum Electrode Plate For Glass And Rare Earth Industry:
The molybdenum plate is dark brown, and if it is washed with alkali, it will have a silver-gray metallic luster. It can be produced according to the width and thickness provided by the user. Thickness > 0.7mm shall be supplied in hot-rolled state, and plates with thickness < 0.7mm shall be supplied in cold-rolled or surface-cleaned state.
The molybdenum plate used as electrode material is generally more than 3 mm thick, and the surface will be polished or polished.
Molybdenum electrode is a molybdenum electrode material, using its unique advantages, temperature resistance, continuous surface, good electrical conductivity, stable edge, excellent corrosion resistance - to improve its overall quality and service life. Molybdenum electrode is silver gray metallic luster. This is all kinds of forged intermediate frequency furnaces after isostatic sintering, then turning, rolling, planning and grinding.
2. Size of Molybdenum Electrode Plate For Glass And Rare Earth Industry:
| Name | Thickness(mm) | Width max.(mm) | Length max.(mm) |
| Molybdenum sheet | 0.2~0.3 | 650 | 2500 |
| Molybdenum sheet | 0.3~0.5 | 700 | 3000 |
| Molybdenum sheet | 0.5~1.0 | 750 | 3500 |
| Molybdenum sheet | 1.0~2.0 | 650 | 3500 |
| Molybdenum plate | 2.0~3.0 | 600 | 3000 |
| Molybdenum plate | >3.0 | 600 | L |
| Description | Grade | Density g/cm3 |
Size (mm) | Application | |
| Large Size | High temperature molybdenum plate, molybdenum alloy sheet | Mo-La TZM |
>9.8 | (20-40) x (90-240) x (200-600) | Good high temperature performance and machinability |
| High purity molybdenum sheet | Mo | 10.2 | Suitable for rolling pure molybdenum sheet | ||
| Small Size | High purity molybdenum sheet | Mo | 16 x 16 x 160 | Suitable for rolling molybdenum foil and molybdenum disc | |
3. Chemical of Molybdenum Electrode Plate For Glass And Rare Earth Industry:
Chemical content as per ASTM B386:
Purity >99.95%
| Element | Composition % | ||
| Grade | |||
| 361(Mo-1) | 364(TZM) | 366(Mo-30%W) | |
| C | 0.01 max. | 0.01~0.04 | 0.03 max. |
| O,max. | 0.007 | 0.03 | 0.0025 |
| N,max. | 0.002 | 0.002 | 0.002 |
| Fe, max. | 0.01 | 0.01 | 0.01 |
| Ni, max. | 0.005 | 0.005 | 0.005 |
| Si, max. | 0.01 | 0.005 | 0.01 |
| Ti | 0.4~0.55 | ||
| W | 27~33 | ||
| Zr | 0.06~0.12 | ||
| Mo | Remain | Remain | Remain |
