Φ20mm Φ22mm Φ24mm Φ25mm Niobium Bar For Chemical & Electronic Industries

Price Negotiable
Price: Negotiate
MOQ: 1kg
Delivery Time: 5~7days
Brand: PRM
Product Description

Product Information:

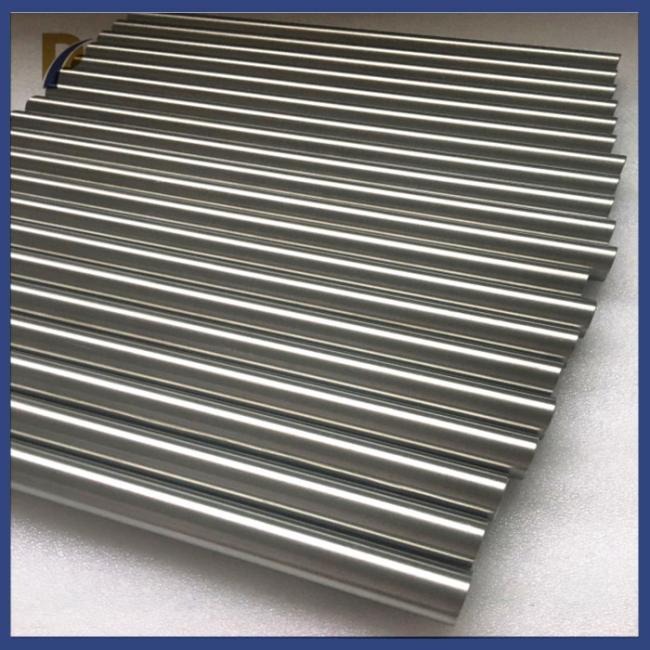

Product Name: Niobium rod

Material: RO4200, RO4210,Nb1,Nb2,NbZr1,TaNb20,TaNb30
Diameter:φ3.0-100mm
Standard: ASTM B392
Purity: ≥99.95%

Surface: polished

State: Annealed state (M)





Tolerance Range:



Diameter Tolerance of Diameter (mm) Length (mm)



Fixed length

Allowable deviation (mm)



Forged rod Extruded rod Rolled rod Polished rpd 200~1500 +5
3.0~4.5 ±0.05 —— ±0.05 —— 200~1500
>4.5~6.5 ±0.10 —— ±0.10 —— 200~1500
>6.5~10.0 ±0.15 —— ±0.15 —— 200~1500
>10.0~16.0 ±0.20 —— ±0.20 —— 200~2000

+5

>16.0~18.0 ±1.0 —— —— ±0.05 200~2000
>18.0~25.0 ±1.50 ±1.0 —— ±0.05 200~2000
>25.0~40.0 ±2.0 ±1.5 —— ±0.1 200~2000
>40.0~50.0 ±2.50 ±2.0 —— ±0.2 200~2000
>50.0~65.0 ±3.00 ±2.0 —— ±0.30 200~2000
>65.0~150 ±4.00 ±3.0 —— ±0.30 200~1000





Niobium and niobium alloy rods and wires are widely used in fields such as chemistry, electronics, aviation and aerospace due to their high melting point, corrosion resistance, and good cold working properties.



Niobium crucible, Niobium alloy rod, niobium wire,niobium plate, niobium disc,niobium tube and other tantalum niobium alloy products, if know more information,pls contact with our sales manager:
