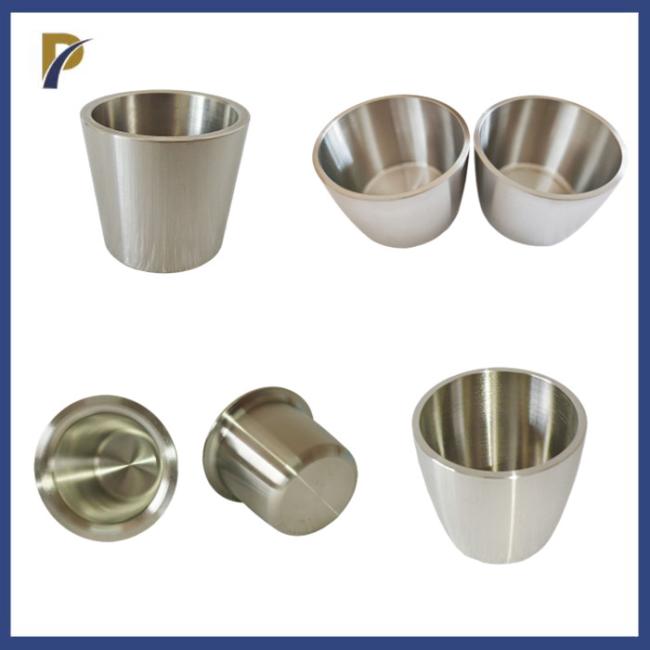

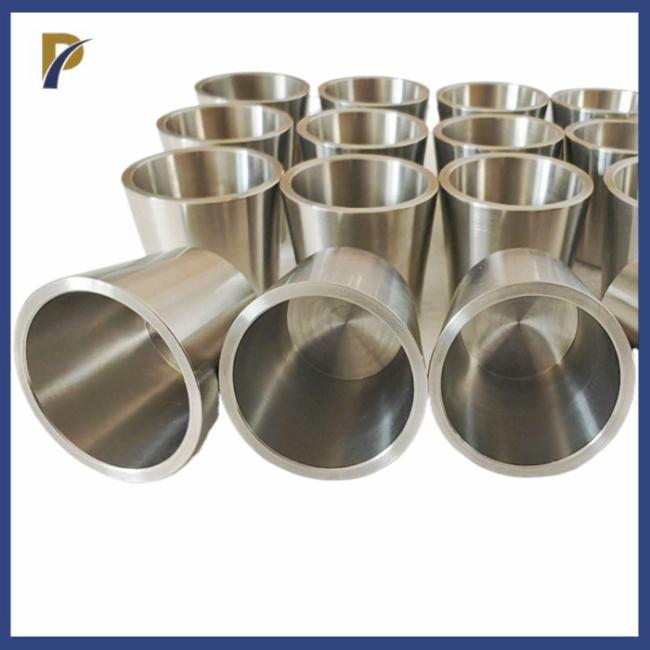

25ml 50ml 45ml Tapered Zirconium Crucible Analysis Zr702 Crucible With 1mm 2mm
Product Information:
| Name: | 25ml 50ml 45ml Tapered Zirconium Crucible Analysis Zr702 Crucible With 1mm 2mm |
| Material: | Zirconium & Zirconium alloy |
| Grade: | Zr702,Zr705,RO60001,RO60901 |
| Density: | 6.51g/cm3 |
| Shape: | Crucible |

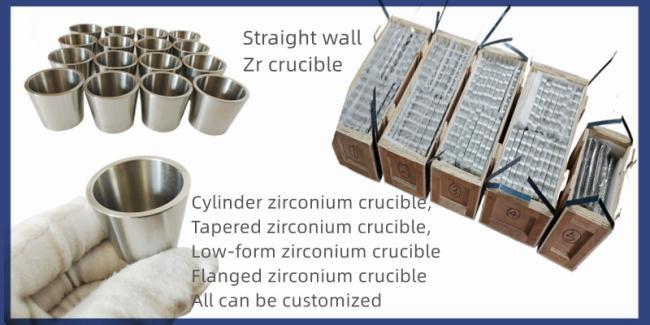

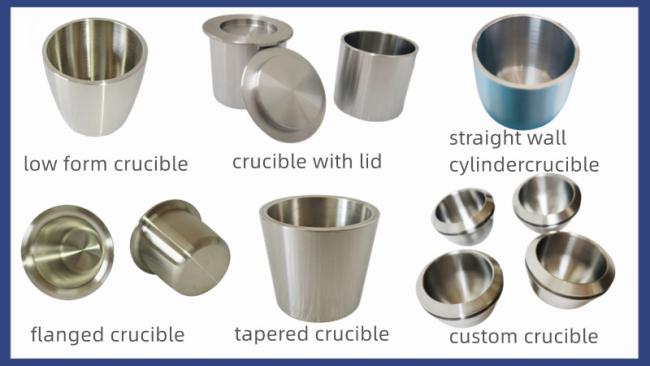

| Type: | Low form zirconium crucible, flanged rims zirconium crucible,straight wall zirconium crucible, tapered zirconium crucible, Cylindrical zirconium crucible. |
| Volume: | 5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml,50ml etc, |
| Custom | Yes, process as per customer's drawing. |
| Wall thickness: | 1mm,2mm,or custom |
| Service life: | A crucible with a wall thickness of 2mm has a longer service life than a thin-walled crucible and can be used repeatedly for more than 100 times. |
We are a professional manufacturer of zirconium crucibles in China. We can produce zirconium crucibles of various specifications and shapes. We export fixed quantities every month to countries rich in mineral resources such as Australia and South Africa.
Composition of our Zirconium materials
| Zr 702 | Zr 704 | Zr 705 | Zircaloy-2 | Zircaloy-4 | |
| Sn | / | 1~2% | 1~2% | 1.2~1.7% | 1.2~1.7% |
| Fe | <0> | 0.1~0.2% | <0> | 0.07~0.2% | 0.07~0.2% |
| Cr | <0> | 0.1~0.2% | <0> | 0.05~0.15% | 0.05~0.15% |
| Ni | / | / | / | 0.03~0.08% | <0> |
| Hf | 1~2.5% | <4> | <4> | ||
| Nb | / | / | 2~3% | ||
| Zn+Hf | ~99.5% | ~97.5% | ~95.5% | ~98% | ~98% |
As zirconium has better mechanical strength at high temperature than most other metals, zirconium crucibles are ideal for melting other metals. The corrosion resistance of Zirconium comes from a tightly adhered oxide, zirconia, which forms almost instantaneously. As a result, zirconium crucibles resist the corrosion of almost all acids, except hydrofluoric acid.
Shaanxi Peakrise Metal supplies various kinds of zirconium crucible. Customization is available by your request.
