MW30 Molybdenum Tungsten Alloy 2.0mm Thickness ASTM B386

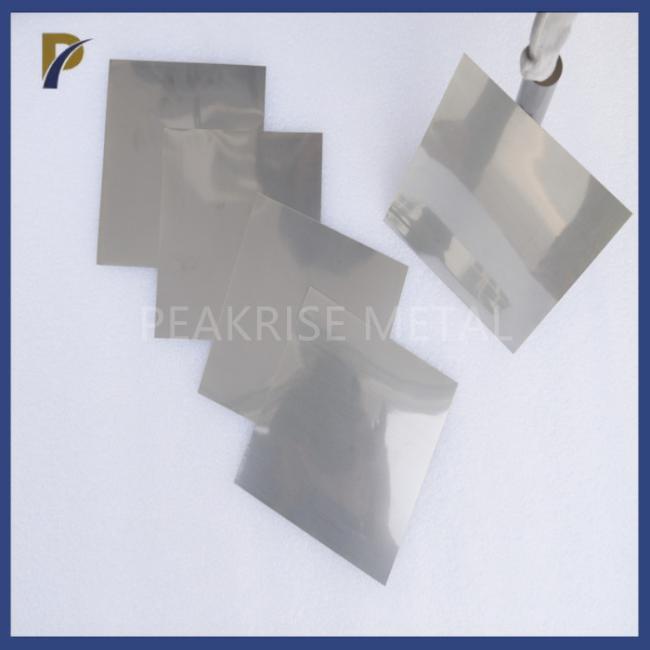

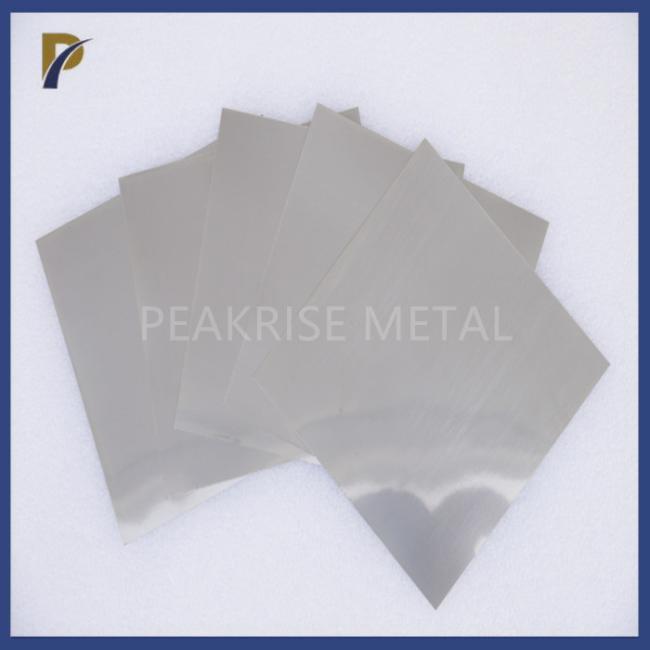

MW30 Molybdenum Tungsten Alloy Sheet 2.0mm Thickness
1. Product Description of MW30 Molybdenum Tungsten Alloy Sheet 2.0mm Thickness:
Excellent creep resistance, low resistivity, good corrosion resistance, high thermal conductivity, and little thermal expansion are all characteristics of molybdenum. In comparison to molybdenum or molybdenum alloys, molybdenum tungsten alloy (Mo-W Alloy) has good performance in preventing corrosion of molten zinc and may be employed at higher temperatures. When it comes to Molybdenum Tungsten Alloy (Mo-W Alloy), Shaanxi Peakrise Metal Co.,Ltd (PRM) may offer various shapes with varying Zirconium, Hafnium, and Carbon ratios. Bar, sheet, plate, and disc are examples of common forms, and custom shapes can be requested.
2. Size and Tolerance of MW30 Molybdenum Tungsten Alloy Sheet 2.0mm Thickness:
| Width, Inches (mm) | Thickness ,Inches (mm) | Tolerance of Thickness , Inches (mm) |
| ≤12 (305) | ≥0.005~0.01 (0.13~0.25) |
±0.001(±0.0254) |
| ≥0.01~0.02 (0.25~0.51) | ±0.002 (±0.0508) | |
| ≥0.02 (0.51) | ±10% | |
| ≥12~14 (305~610) | ≥0.01~0.025 (0.25~0.64) | ±0.0025 (±0.0635) |
| ≥0.025 (0.64) | ±10% | |
| ≥24~30 (610~762) | ≥0.016~0.03 (0.41~0.76) | ±0.003 (±0.0762) |
| ≥0.03 (0.76) | ±10% | |
| ≥30~48 (762~1219) | ≥0.04 (1.02) | ±10% |
| ≥0.1875 (4.762) | ±10% |
| Quantitative analysis | ||||||||
| Element | W | Mo | Fe | Si | Ni | C | O | N |
| Concentration(%) | 27~33% | remain | 0.01 | 0.01 | 0.005 | 0.03 max | 0.0025 |
0.002 |
main used for the disc of tungsten crucible of sapphire crystal growth furnace field
Other use applictaion:Alloys of molybdenum and metals play an important role in weapons manufacturing, as well as in cutting-edge fields such as missiles and rockets. Additionally, filament, the heating element of high temperature electric furnaces, is made from tungsten wire. The electronics industry makes extensive use of molybdenum metal, which is easily processed into wire, strip, sheet, rod, and other shapes. In order to support the heating wire in light bulbs, the grid of electron tubes, etc., molybdenum wire is employed as a tiny hook. Molybdenum and tungsten boats (for vacuum coating)
