Mo + 0.40-0.55%Ti + 0.06-0.12%Zr TZM Molybdenum Alloy Disc Tzm Alloy Disc Titanium Zirconium Molybdenum Alloy Disk

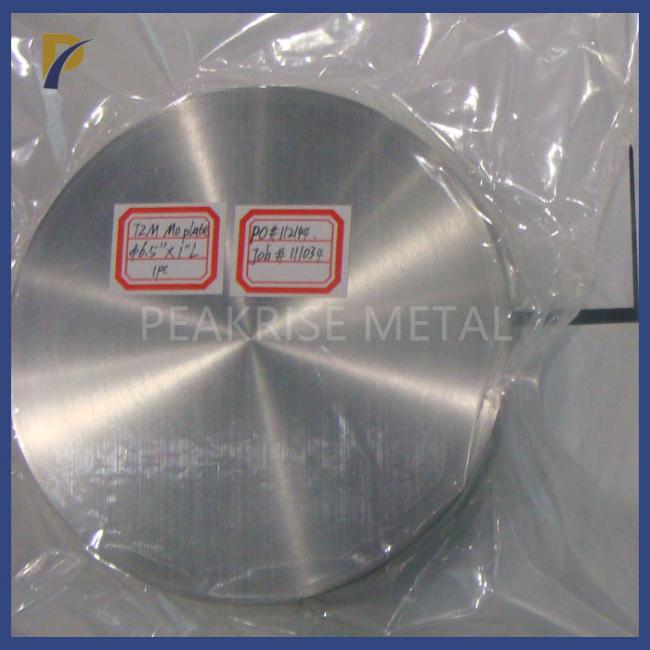

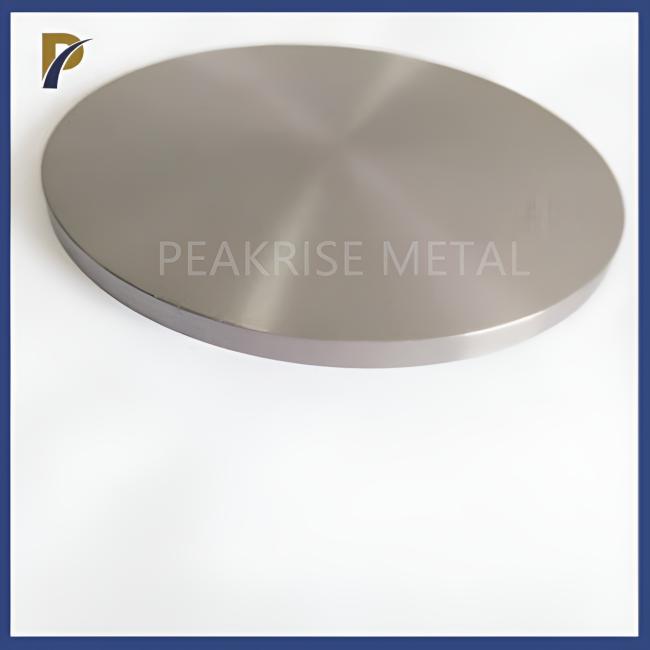

Mo + 0.40-0.55%Ti + 0.06-0.12%Zr TZM Molybdenum Alloy Disc

1. Description of Mo+0.4~0.55%Ti+0.06~0.12%Zr TZM Molybdenum Alloy Disc:

TZM molybdenum alloy disc is currently the most excellent molybdenum alloy high temperature material. It is a solid solution hardening and particle reinforced molybdenum-based alloy, TZM is harder than pure molybdenum metal, and has a higher recrystallization temperature and better creep resistance, the recrystallization temperature is about 1400 ℃, much higher For molybdenum, it can provide better solderability.

2. Size of Mo+0.4~0.55%Ti+0.06~0.12%Zr TZM Molybdenum Alloy Disc:

Disc diameter : 20－600mm

Disc thickness: 6－25mm

Surface: black,C.C,bright,polished

Standard: ASTMB 386

Also we can process as per customer's request.

3. Mechanical properties of Mo+0.4~0.55%Ti+0.06~0.12%Zr TZM Molybdenum Alloy Disc:

4. Actual measured chemical composition of  TZM Molybdenum Alloy Disc:

5.  Application of Mo+0.4~0.55%Ti+0.06~0.12%Zr TZM Molybdenum Alloy Disc:

TZM Molybdenum Alloy Disc mainly used for high-temperature furnace components, crucibles, missiles and other rocket nozzle under high temperature.

TZM Molybdenum Alloy Disc are widely used as contact materials in silicon controlled rectifiers diodes, transistors and thyristors (GTO’S). Other than in specialist applications, molybdenum is now accepted as the first choice mounting material for power semiconductor devices due to its significantly lower cost and weight.The fact that both materials have a similar coefficient of expansion to silicon combined with high thermal conductivity makes them an ideal choice, especially in large area power devices where considerable heat is generated. Further applications include the use of molybdenum as heat sink bases in IC’S, LSI’S and hybrid circuits.
