ASTM B386 Molybdenum Alloy Foil Strip 0.02~0.5mm Thickness Molybdenum Foil 0.3mm Molybdenum Heating Strip Moly Foil
ASTM B386 Molybdenum And Molybdenum Alloy Foil/Strip
1. ASTM B386 Molybdenum and Molybdenum Alloy Foil/Strip Description:
Molybdenum foil is one of molybdenum products. It is a flat-rolled molybdenum with the thinnest 0.02mm, that is, molybdenum foil, which is obtained by machining the molybdenum plate obtained by powder metallurgy, and its minimum purity is 99.95%. The processing of molybdenum foil is mainly to obtain the corresponding mechanical properties. Its main processing processes include bending, spinning, stretching, stamping, etc., so that it can be used under high temperature and low temperature conditions, and its properties are roughly the same as molybdenum sheets. Shaanxi Peakrise Metal Products Co., Ltd. can produce molybdenum foils of different shapes and types according to the thickness, surface conditions and tolerances required by customers. Molybdenum foil is widely used in electronics, electrical components, stretched products, furnace insulation and corrosion-resistant products.
2. Specifications of ASTM B386 Molybdenum And Molybdenum Alloy Foil/Strip:

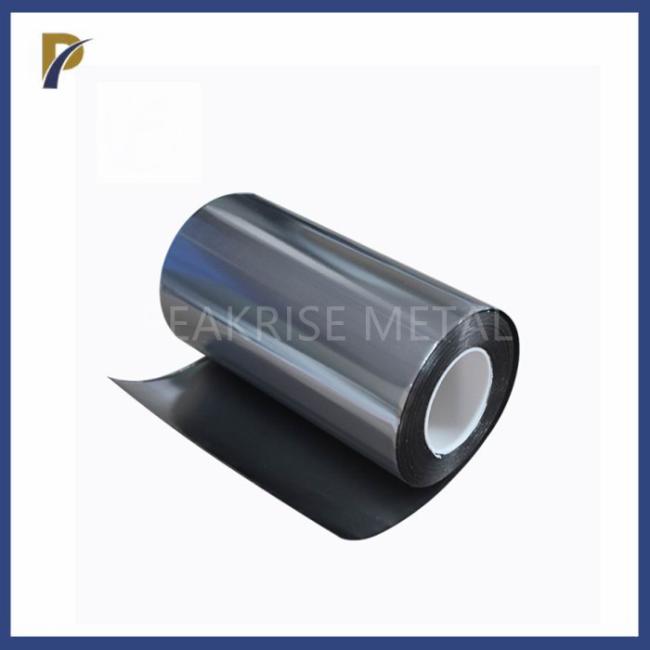

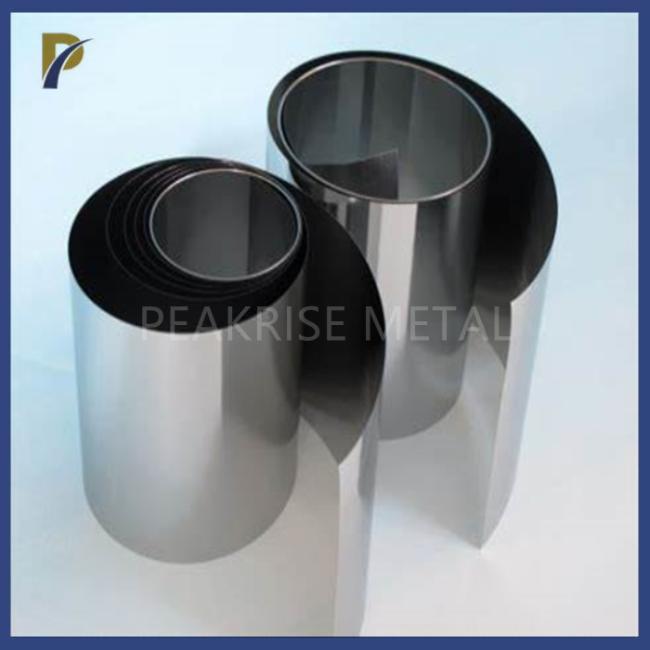

Molybdenum foil/strip in coil
density: 10.2g/cm3
Grade: Mo 1 Mo2 Mo361 Mo364
Purity: 99.95%,99.97%
Standard :ASTM B386 ,ASME SB386
Appearance: Surface can be supplied in a mirror or matte finish dependent upon thickness and width parameters.
Condition: Vacuum Anneal and un-annealed
| Grade | Type | Condition | Thickness×Width×Length/mm |
| Mo1 | Foil/Strip | cold rolled(Y) annealing(m) |
(0.01~0.03) ×(50~120) ×(≥200) (＞0.03~＜0.13) ×(50~240) ×(≥200) |
| Mo2 | |||
| MoLa |
3. Actual tested chemical content of ASTM B386 Molybdenum And Molybdenum Alloy Foil/Strip:
| Quantitative analysis | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Element | Ni | Si | Fe | Sn | Ca | Bi | Mg | Cd | Al | P | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Concentration(%) | 0.003 | 0.002 | 0.005 | 0.0001 | 0.002 | 0.0001 | 0.002 | 0.0001 | 0.002 | 0.001 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Element | C | O | N | Sb | Pb | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Concentration(%) | 0.01 | 0.003 | 0.003 | 0.0005 | 0.0001 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Purity(Metallic Base) Mo≥99.95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4. Features and Packaging of ASTM B386 Molybdenum And Molybdenum Alloy Foil/Strip:
Generally, the thickness of molybdenum foil is between 0.02 and 0.3. The 0.025 molybdenum foil prepared by our company has low temperature resistance, continuous surface, flat edge, good surface texture, high clamping force, high strength, low cost and high efficiency Etc.
The surface of the product is a smooth metallic color, without cracks, folds, peeling, penetrating pinholes, metal or non-metallic indentation defects, local slight scratches and roll marks, and traces of lubricating oil and cleaning are allowed . The surface of the annealed product will be slightly scratched and wrinkled.

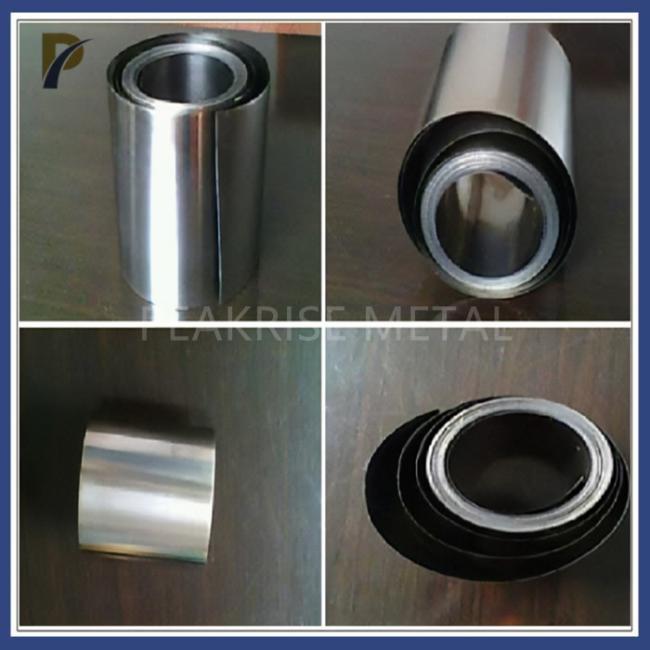

Molybdenum foil is generally delivered in rolls, wrapped with soft paper or plastic film on the mandrel. Molybdenum foil that is not delivered in rolls is wrapped with soft paper or plastic film per layer, and each stack is clamped with cardboard, tied tightly, and then packed in cartons. In the carton, place moisture-proof paper lined, and fill it with foam or soft paper and plug it tightly to prevent the items from moving. In addition, the words moisture-proof, handle with care, etc. should be indicated on the outside of the carton.
Related Products:

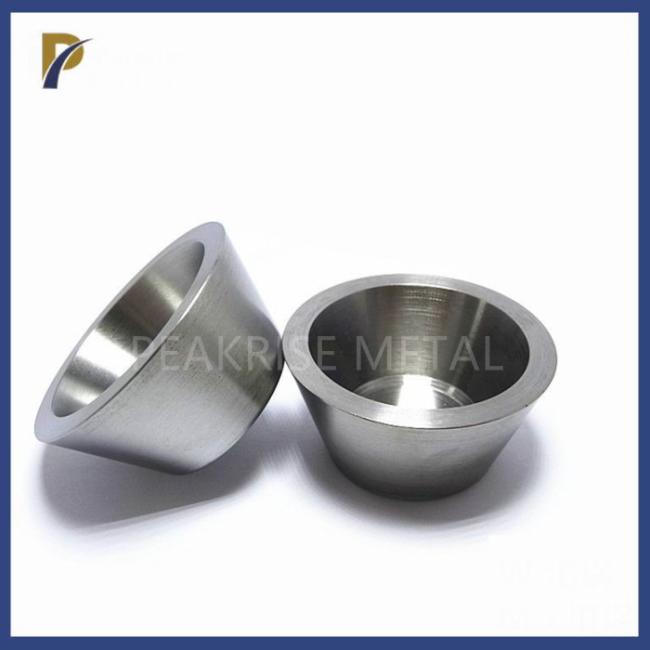

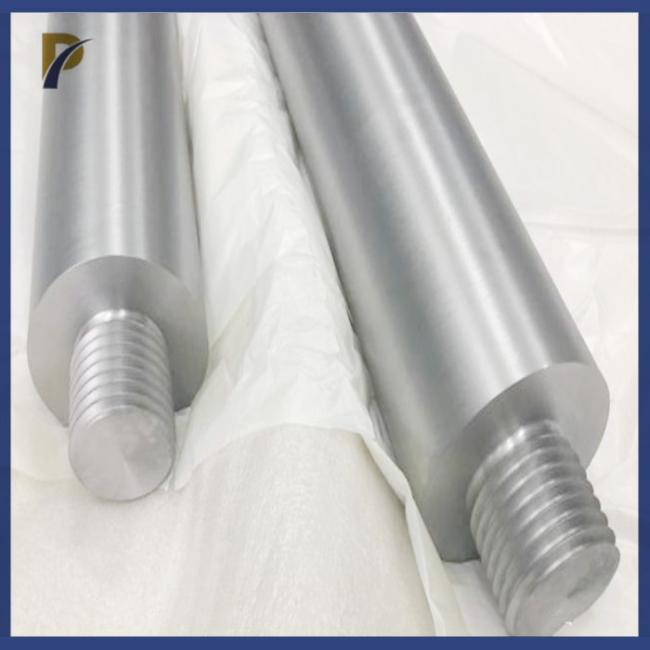

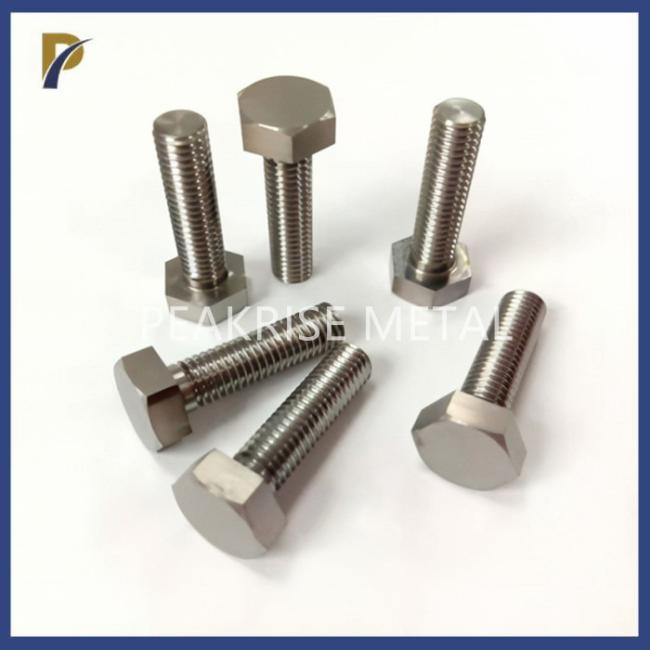

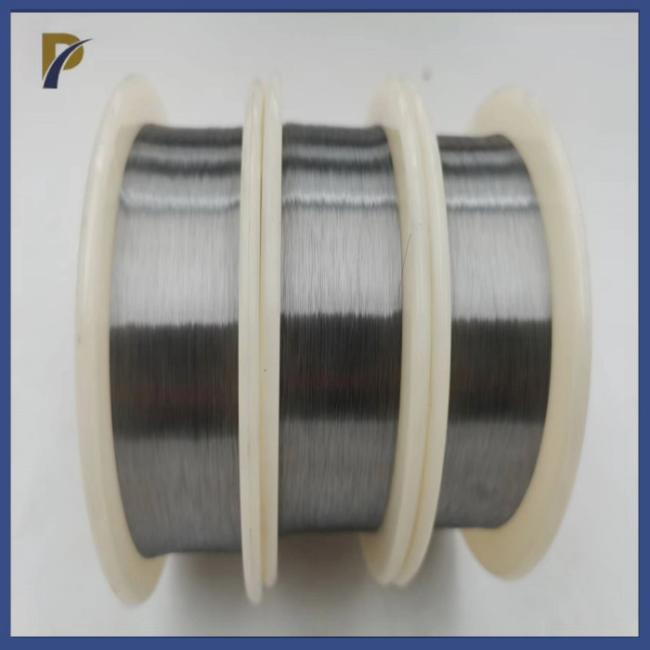

W/Mo screw Mo electrode W/Mo crucible W/Mo wire
