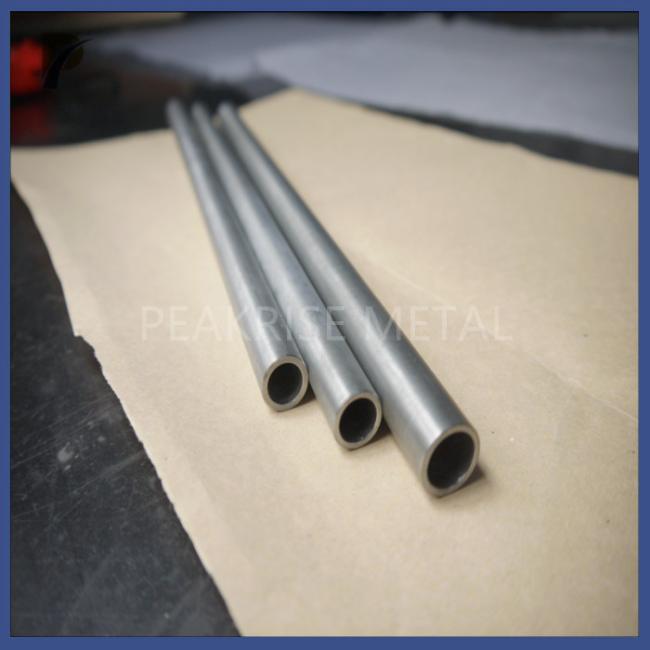

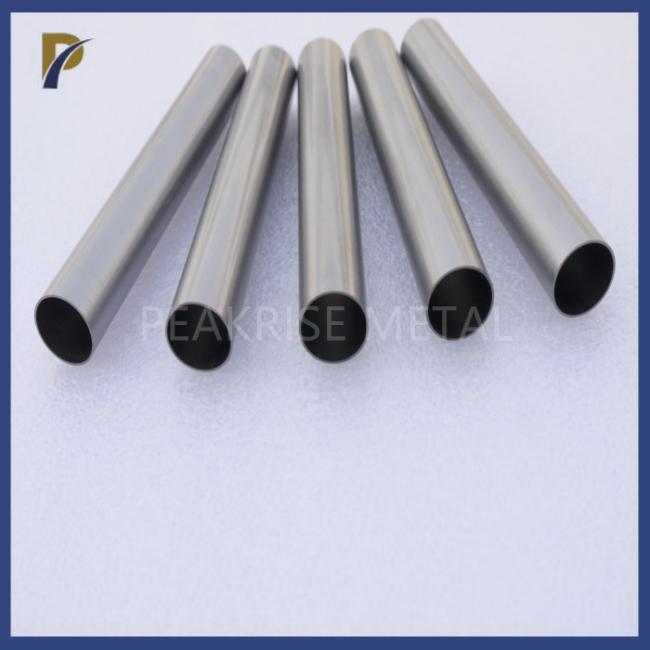

Molybdenum Tube For Thermocouple Protection Sleeve

1. Description Of Molybdenum Tube For Thermocouple Protection Sleeve:

Molybdenum tubes are widely used in the electronic vacuum industry, and can also be used as high-temperature environment cooling tubes, heating tubes, high-temperature environmental protection tubes, etc. Large molybdenum tubes can be used as circular targets, etc., and small molybdenum tubes can be used as instrument parts.

It can be used as tungsten-rhenium thermocouple protection sleeve, grid plate and cathode support cylinder of high-power electron tube, sputtering target, etc.

2. Classification Of Molybdenum Tube For Thermocouple Protection Sleeve:

Deep hole drilling molybdenum tube,

Sintered molybdenum tube,

Welded molybdenum tube

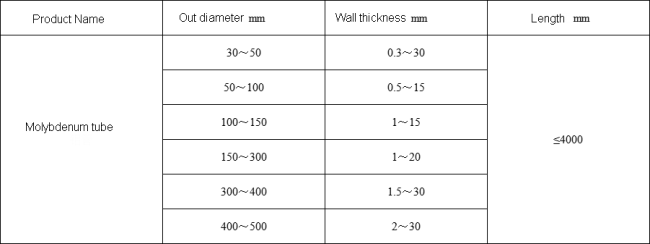

3. Size Of Molybdenum Tube For Thermocouple Protection Sleeve:

Other size ,pls send to us email ,we can custom as per customer's request.

4. Process craft Of Molybdenum Tube For Thermocouple Protection Sleeve:

Deep hole drilling of molybdenum tubes is mainly to drill high-quality molybdenum rods through a drilling machine, and finally produce molybdenum tubes. This method wastes a lot of molybdenum materials, so the cost is also relatively high. However, the molybdenum tubes of this process are Better mechanical properties.

The sintered molybdenum tube is mainly made by mixing molybdenum powder evenly in the abrasive tool, die-casting by isostatic pressing, and then sintered at high temperature, and then machined, and the outer and inner surfaces of the molybdenum tube are polished. This process is mainly used to produce large molybdenum tubes, mainly used in smelting equipment, furnace tubes, annular targets, vacuum heating chambers, etc.

Welded molybdenum tube is to roll the molybdenum plate into a tube shape and then weld it. After welding, the roundness correction treatment is carried out. The molybdenum tube produced by this process is used for equipment parts that do not have strict size requirements. Use size not too big.
