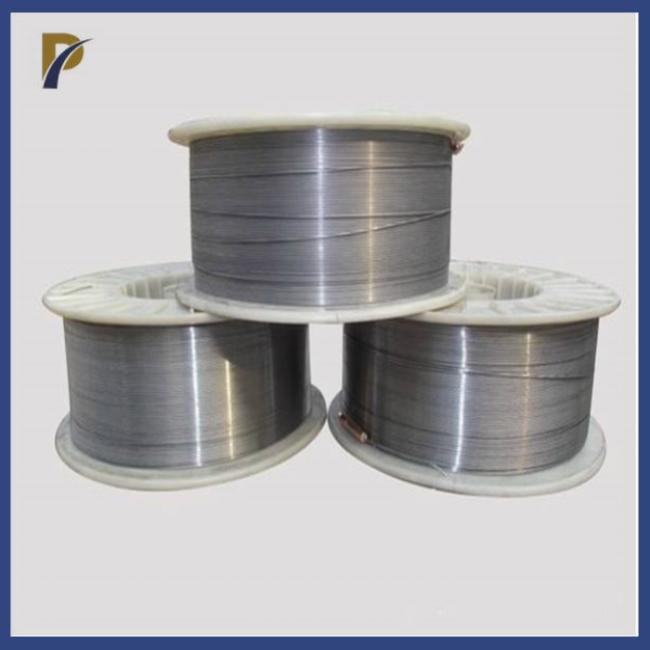

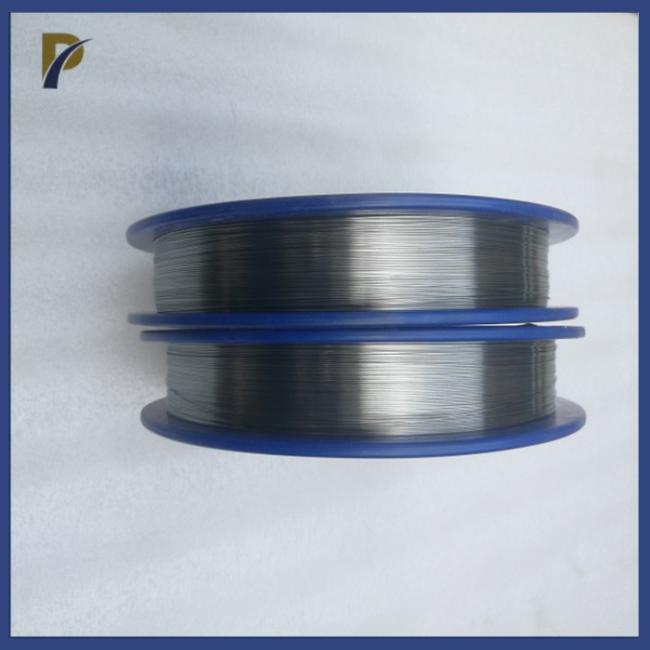

Electropolished White Molybdenum Wire
1. Description Of Electroplished White Molybdenum Wire:
Clean molybdenum wire is electropolished, and the surface should be clean, flat, bright and uniform in size. Mainly used for spiral filament, lead, support and other components mandrel.
Shaanxi Peakrise Metal can provide molybdenum wire with diameter Ø0.03~Ø2.0mm, we can also customize according to your requirements.
The use of molybdenum is not large. The vacuum tube is mainly used to make cathodes, anodes, and wire-cut molybdenum wires are used in inert gas protection environments. high temperature.
2. Size Of Electroplished White Molybdenum Wire:
| Diameter (mm) | Mo content (%) | Tolerance (mm) | Weight (kg) | Length (m) | Coil diameter(mm) |
| 1.41~1.50 | 99.95 | +0/-0.04 | 4-10 | 250-600 | 450~600 |
| 1.51~1.62 | 99.95 | +0/-0.04 | 4-10 | 220-480 | 450~600 |
| 1.91~2.00 | 99.95 | +0/-0.04 | 5-12 | 170-380 | 450~600 |
| 2.21~2.30 | 99.95 | +0/-0.05 | 5-12 | 130-280 | 450~600 |
| 2.31~2.40 | 99.95 | +0/-0.05 | 6-16 | 130-350 | 600 |
| 3.10~3.18 | 99.95 | +0/-0.05 | 6-16 | 80-200 | 600 |
3. Characteristic Of Electroplished White Molybdenum Wire:
| Name | Specific properties | Application |
| Molybdenum wire electrolytic cleaning | Electrolysis can be removed | mandrel curl |
| Molybdenum wire hydrogen cleaning | Can remove hydrogen from the atmosphere | For making different types of bulb holders |
4. Application of Electroplished White Molybdenum Wire:
According to the spectrum of applications, molybdenum wire is separated into many categories, such as spray molybdenum wire, electric light source molybdenum wire, heating furnace molybdenum wire, electronic device molybdenum wire, and electric spark cutting molybdenum wire. The chemical composition, mechanical characteristics, surface finish, unit weight, and dimensional tolerance are the primary factors that determine the quality of molybdenum wire, and the quality and performance standards for various molybdenum wire products vary somewhat.
The heating element of the industrial electric furnace is mostly made of the molybdenum wire utilized in the heating furnace. The electric light source's wire is thicker than the molybdenum wire, and the high temperature performance is a significant quality indicator.
Since molybdenum wire is used in vacuum electronic devices and electrode wire is used in WEDM machine tools, both materials have relatively unique application circumstances and severe criteria for precision and dependability. It should have a big elongation, a high tensile strength, and a permitted range of dimensional deviation that is less than or equal to 1.0%, roughly speaking.
