50%Mo Molybdenum Tungsten Alloy Tube For Out Diameter 100mm Sintered MoW Alloy Tube Molybdenum Tungsten Alloy Ring Tube

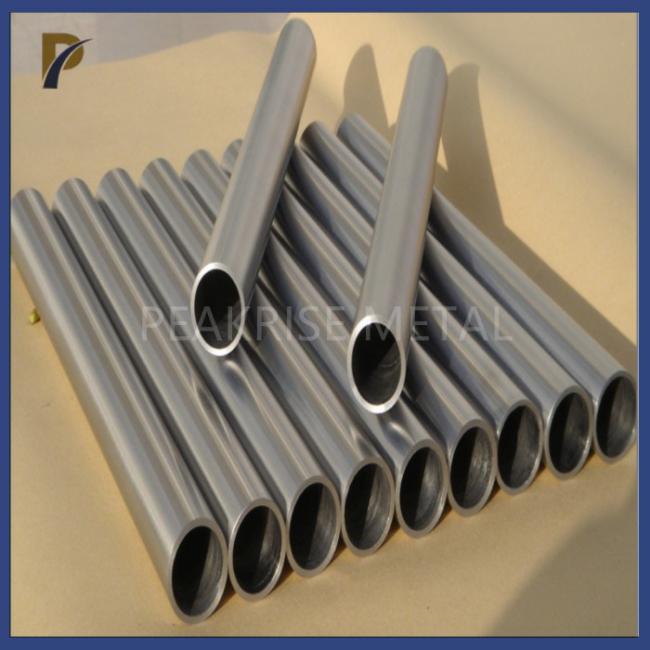

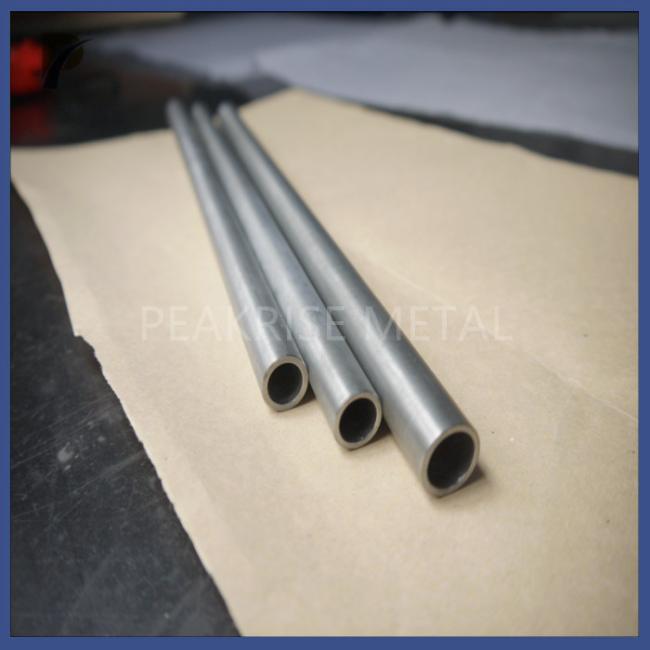

50%Mo Molybdenum Tungsten Alloy Tube
1. Product Description of Metal Alloys Molybdenum Tungsten Alloy Tube diameter 100mm:
Tungsten-molybdenum alloy pipes containing 50% molybdenum (mass) have excellent corrosion resistance to liquid zinc, and are used to manufacture agitators, pipe and vessel liners and other components in the zinc smelting industry. Tungsten-molybdenum alloy has good high-temperature strength, similar performance to tungsten and smaller specific gravity than tungsten, so it can be used as high-temperature components in rockets and missiles, filaments of electron tubes, parts and other high-temperature materials under corresponding high-temperature conditions.
2. Size of Metal Alloys Molybdenum Tungsten Alloy Tube diameter 100mm:
|
Out diameter |
Wall thickness |
Height |
|---|---|---|
| 26～200 mm | 5～30 mm | ≤1300 mm |
Or we can process as per customer request.
3. Chemical of Metal Alloys Molybdenum Tungsten Alloy Tube For diameter 100mm:
| Quantitative analysis | ||||||||
| Element | W | Mo | Fe | Si | Ni | C | O | N |
| Concentration(%) | 48~53% | remain | 0.01 | 0.01 | 0.005 | <0.03 | 0.0025 |
0.002 |
4. Product Features of 50%Mo Molybdenum Tungsten Alloy Tube diameter 100mm:
A. High elastic modulus
B. Very low coefficient of thermal expansion (important for metal-ceramic structures, metal-semiconductor structures, metal- graphite structures. For example, in the field of LEDs, future V-LEDs, which are considered high-power LEDs, will use molybdenum or molybdenum Copper material as base material)
C. Excellent electrical conductivity (metallic properties)
D. Excellent thermal conductivity (metallic properties)
E. Selective erosion resistance
5. Company advantage of 50%Mo Molybdenum Tungsten Alloy Tube For Outdiameter 100mm:
The technology is mature and the technology is stable.
Product performance continues to improve.
A professional technical team can customize a complete set of tungsten-molybdenum alloy material application solutions for you.

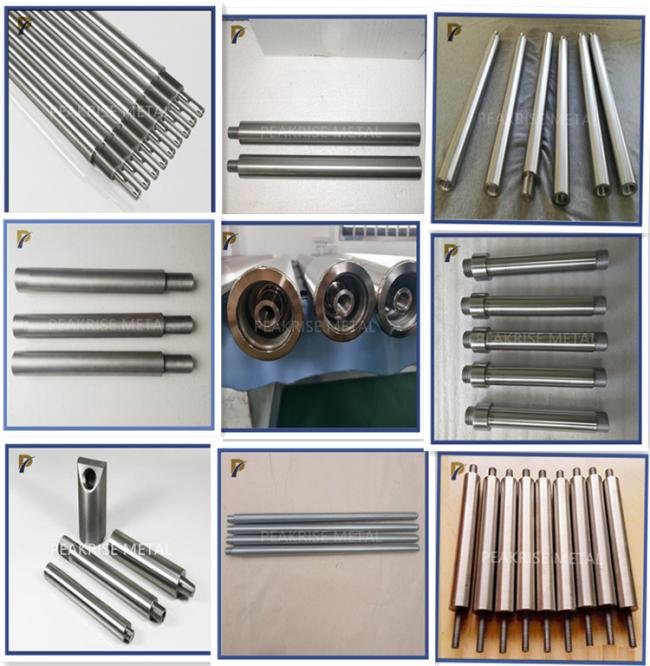

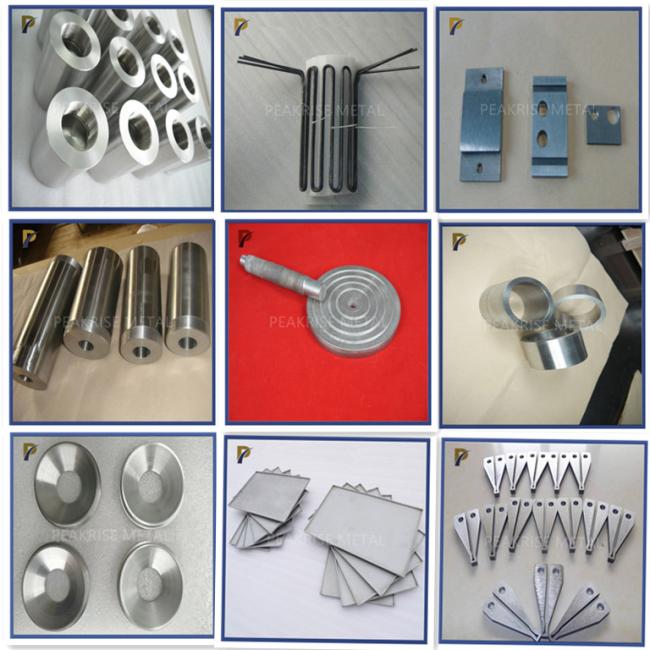

Shaanxi Peakrise Metal Co.,Ltd produced Molybdenum Tungsten,MoCu alloy,WCu alloy refractory metal,the type have sheet,rod,tube,wire,crucible and custom process parts.
