40TPH One Stage RO Water Treatment Plant Water Purifier Machine

Reverse osmosis (RO) system is a water purification process that uses partially permeable membranes to separate ions, unwanted molecules, larger particles and colloid, organic impurities, and heavy metal ions from drinking water. The pure water produced by the two-stage reverse osmosis pure water treatment system is the best choice for human body to replenish water quality. Meet our final water quality requirements.

The Working Principle of RO Water Treatment System

A container is divided into two halves, the middle of the container will have a semi-permeable membrane barrier, the container on both sides of the weak solution and concentrated solution, due to the principle of pressure difference, the solution of low concentration will flow to the high concentration.

Technical Specifications of RO Water Treatment System

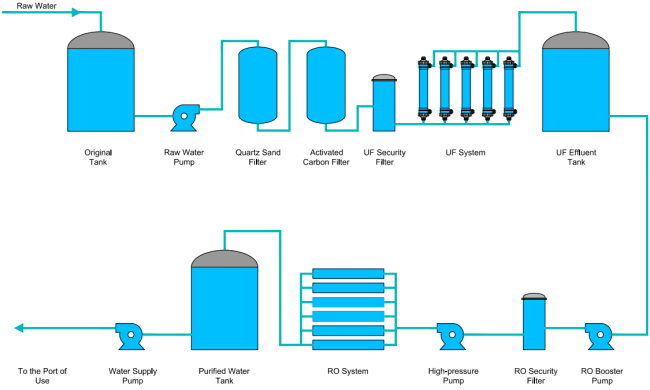

RO Water Treatment System Process Flow

Raw water pump - sand filter - carbon filter - cartridge filter - high pressure pump -RO membrane host machine -RO cleaning system

RO Water Treatment System Features

(1) Fast reaction rate, short processing time.

(2) a wide range of application, containing azo, carbon double bond, nitro, halogenated structure and other difficult to degrade organic matter has a good treatment effect.

(3) Simple process, long service life, low operating cost, convenient operation and maintenance, stable treatment effect.

(4) High chroma and COD removal rate, improve the biodegradability of RO concentrated water.

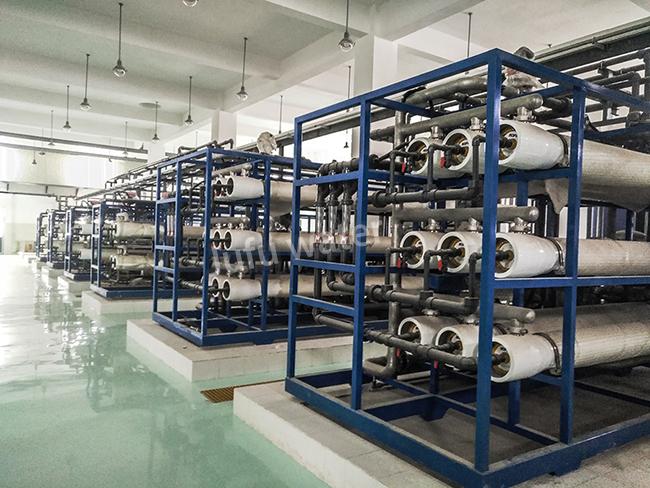

Photos and details of Reverse Osmosis Water Treatment System

FAQ:

1. RO water treatment system configuration?

First-stage multi-stage process: if the recovery rate is not achieved in the first stage (50-65% in the first stage and 65-75% in the second stage), the multi-stage tandem filtration can be used. The effective cross-sectional area of each segment decreases. 2:2 and 2:3 and 4:2:1

Multi-stage process: when the first stage process cannot meet the effluent quality requirements (the first stage is generally ≤20μs/cm), the product water of the first stage process is sent to another reverse osmosis unit.

The arrangement of membrane components can be divided into series and parallel.

2. What is the shell film material and specification of ro water treatment system?

Material of membrane case: stainless steel and fiberglass (FRP)

Specification of membrane shell: four inch membrane shell 4040 (one core to four core)

8 inch membrane case 8040 (one to seven cores)

Water inlet: end water inlet, side water inlet

3. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)

Model 4040 is designed by 0.25m3/h

Model 8040 is designed by 1-1.2m3/h
