Steel Long Tangent U Bolts Thread Conduit Pipe Hangers And Supports
ELECMAN ® Steel Long Tangent U Bolts Thread Conduit Pipe Hangers And Supports
Applications
ELECMAN ® Steel long tangent U bolts thread conduit hanger is used to mount and secure electrical conduit. They are available in a variety of sizes, materials and finishes.
Features
- Made from rugged steel with zinc plated finish.
- Recommended for support, anchor or guide of pipe.
- Available sizes from 1/2" to 4".
- Can be installed using ordinary hand tools and require little maintenance or repair.
Specification Data
ELECMAN provides full size steel long tangent U bolts thread conduit hanger from 1/2" to 24".

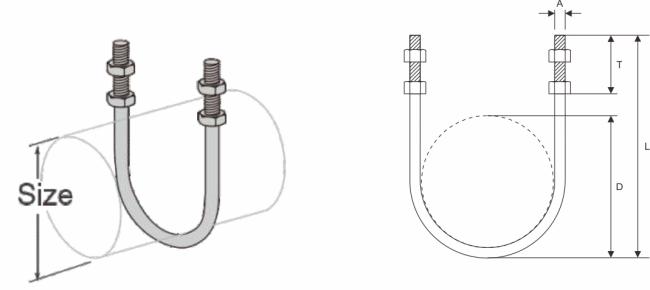

| CAT # | Trade Size | Diameter | Rod Size(A) | L | T |
| ES-8007 A | 1/2" | 21mm | M10 | 65mm | 50mm |
| ES-8007 B | 3/4" | 27mm | M10 | 77mm | 50mm |
| ES-8007 C | 1" | 34mm | M10 | 85mm | 50mm |
| ES-8007 D | 1-1/4" | 43mm | M10 | 93mm | 50mm |
| ES-8007 E | 1-1/2" | 48mm | M10 | 100mm | 50mm |
| ES-8007 F | 2" | 60mm | M10 | 110mm | 50mm |
| ES-8007 G | 2-1/2" | 76mm | M12 | 127mm | 50mm |
| ES-8007 H | 3" | 89mm | M12 | 140mm | 50mm |
| ES-8007 I | 4" | 115mm | M12 | 165mm | 50mm |
| ES-8007 J | 5" | 140mm | M12 | 190mm | 50mm |
| ES-8007 K | 6" | 168mm | M12 | 220mm | 50mm |
| ES-8007 L | 8" | 219mm | M12 | 195mm | 75mm |
| ES-8007 M | 10" | 273mm | M20 | 370mm | 100mm |
| ES-8007 N | 12" | 324mm | M20 | 420mm | 100mm |
| ES-8007 O | 14" | 356mm | M20 | 455mm | 100mm |
| ES-8007 P | 16" | 406mm | M20 | 505mm | 100mm |
| ES-8007 Q | 18" | 457mm | M24 | 555mm | 100mm |
| ES-8007 R | 20" | 508mm | M24 | 605mm | 100mm |
| ES-8007 S | 24" | 610mm | M24 | 710mm | 100mm |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
