ELECMAN ® Galvanized Steel E-Z Grip Sprinkler Loop Pipe Hanger With Knurled Nut
Applications
ELECMAN ® Galvanized steel E-Z grip sprinkler loop pipe hanger with knurled nut are used for supporting sprinkler piping in fire protection applications, and recommended for suspending stationary non-insulated pipe lines. Ideal for suspension using Threaded pins and Threaded rods.
Features
- For use in fire fighting and sprinkler applications.
- Recommended for support, anchor or guide of pipe.
- One-piece design allows quick and easy installation of sprinkler pipes.
- Threaded swivel insert nut to allow for height adjustment after installation.
- With knurled nut for fixing to stud bolt or threaded rod against falling out.
- Mounting without any tools.
- Locking device allows easy premounting.
- Adjustable in height.
Specification Data
ELECMAN provides full size galvanized steel E-Z grip sprinkler loop pipe hanger with knurled nut from 3/4" to 10".

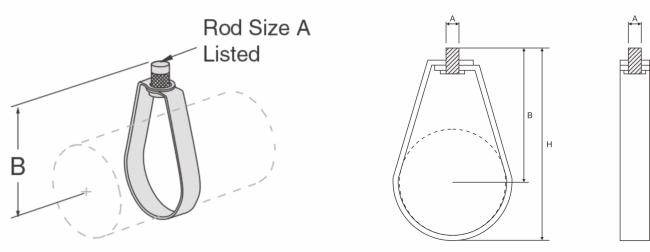

| CAT # | Trade Size | Diameter | Rod Size(A) | Strip Size | Total Height(H) | Safe Working Load |
| ES-8008 A | 3/4" | 28mm | 10mm | 1.5 * 20mm | 61mm | 200kgs |
| ES-8008 B | 1" | 35mm | 10mm | 1.5 * 20mm | 68mm | 200kgs |
| ES-8008 C | 1-1/4" | 42mm | 10mm | 1.5 * 20mm | 75mm | 200kgs |
| ES-8008 D | 1-1/2" | 48mm | 10mm | 1.5 * 20mm | 81mm | 200kgs |
| ES-8008 E | 2" | 60mm | 10mm | 1.5 * 20mm | 100mm | 200kgs |
| ES-8008 F | 2-1/2" | 73mm | 10mm | 2 * 32mm | 120mm | 450kgs |
| ES-8008 G | 3" | 89mm | 10mm | 2 * 32mm | 135mm | 450kgs |
| ES-8008 H | 3-1/2" | 105mm | 10mm | 2 * 32mm | 150mm | 450kgs |
| ES-8008 I | 4" | 115mm | 10mm | 2.5 * 32mm | 165mm | 500kgs |
| ES-8008 J | 5" | 140mm | 12mm | 2.5 * 40mm | 195mm | 550kgs |
| ES-8008 K | 6" | 168mm | 12mm | 3 * 40mm | 230mm | 700kgs |
| ES-8008 L | 8" | 219mm | 12mm | 3 * 50mm | 290mm | 700kgs |
| ES-8008 M | 10" | 273mm | 12mm | 3 * 50mm | 315mm | 700kgs |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
