Zinc Plated Steel Strut Fasteners Round Flat Fender Washer M2 - M12
ELECMAN ® Zinc Plated Steel Round Flat Fender Washer M2 - M12
Applications
ELECMAN ® Zinc plated steel round flat fender washer is a flat washer with a larger outer diameter in proportion to its center hole, and have a wider bearing surface that helps to spread the load over the larger surface of the object. Thus it helps to lower the pressure over the object’s surface.
Features
- Ideal for automotive repair, sheet metal work, plumbing and more.
- Zinc-plated steel for optimized performance and durability.
- Designed with increased surface bearing.
- The fender washer is a flat washer with an outer diameter comparatively larger than the inner diameter.
- For a fender washer, the outer diameter is generally more than 3 times of the inner diameter.
Specification Data
ELECMAN provides full size zinc plated steel round flat fender washer.

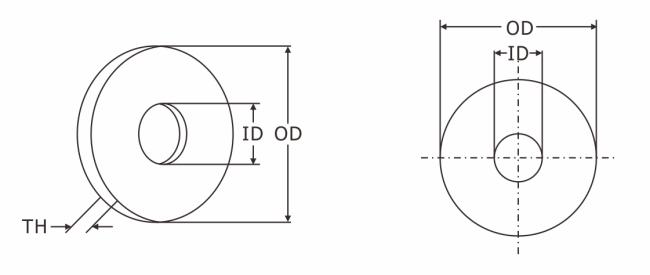

| CAT # | Trade Size | I.D. | O.D. | Thickness |
| FFW-M2 | M2 | 2.2mm | 6mm | 0.8mm |
| FFW-M2.5 | M2.5 | 2.7mm | 8mm | 0.8mm |
| FFW-M4 | M4 | 4.3mm | 12mm | 0.8mm |
| FFW-M5 | M5 | 5.3mm | 15mm | 1.25mm |
| FFW-M6 | M6 | 6.4mm | 18mm | 1.6mm |
| FFW-M8 | M8 | 8.4mm | 24mm | 2.0mm |
| FFW-M10 | M10 | 10.5mm | 30mm | 2.5mm |
| FFW-M12 | M12 | 13.0mm | 37mm | 3.0mm |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
