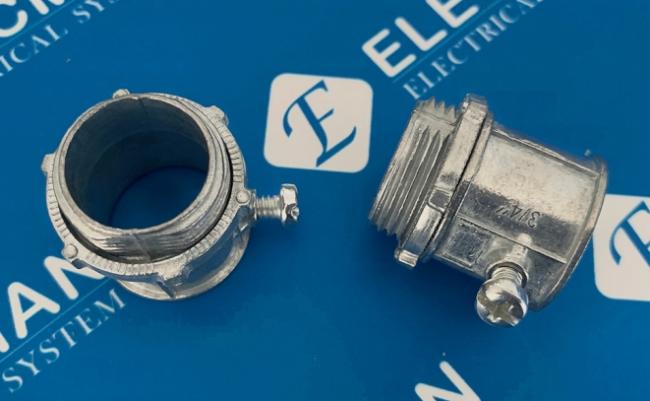

ELECMAN ® Zinc Die Cast EMT Conduit Connector Set Screw Type UL Standard

Application

ELECMAN® Zinc die cast EMT conduit connectors set screw type UL standard are used in dry locations to bond EMT conduit to electrical junction boxes or enclosures. EMT connectors provide concrete tight connections when taped and properly secured with the included locknut, and are rated for electrical applications above 600 volts. Their heavy gauge steel construction maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure.

Features

• Rugged metallic construction provides mechanical protection for the receway.

• Provide concrete-tight connections when taped.

• Male hub treads NPS.

• Assembled with a die cast locknut.

• Insulated type are available.

• Suitable for applications above 600V.

​

​

Certifications and Compliances

ELECMAN® Zinc die cast EMT conduit connectors set screw type shall be produced to the following specifications:

• UL Listed

• File No.: E513114





Specification Data



ELECMAN provides full size zinc die cast EMT conduit connectors set screw type UL standard from 1/2" to 4".

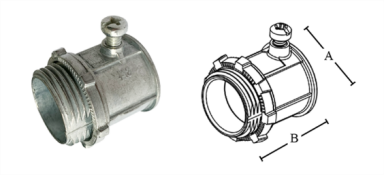

CAT #	Trade Size	DIM A(inch)	DIM B(inch)	INNER PACK	MASTER PACK	WEIGHT/C
CON050	1/2"	0.910	1.150	100	500	10.00
CON075	3/4"	1.190	1.270	100	500	15.50
CON100	1"	1.450	1.460	50	250	10.50
CON125	1-1/4"	1.760	1.850	25	125	10.00
CON150	1-1/2"	2.030	2.090	20	100	10.70
CON200	2"	2.550	2.350	10	50	7.80
CON212	2-1/2"	3.200	2.920	-	25	7.20
CON300	3"	3.910	2.950	-	20	7.30
CON400	4"	4.950	3.600	-	10	6.50





Quality Control



ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connectors are produced according to the high standard.



Packing Information



Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
