Zinc IMC Rigid Conduit Fittings Watertight Conduit Hub With Insulated Throat
ELECMAN ® Zinc IMC/Rigid Conduit Watertight Conduit Hub With Insulated Throat
Applications
ELECMAN® Zinc IMC/Rigid conduit watertight conduit hubs with insulated throat are used to connects and effectively bonds rigid or IMC conduit to a load center or other metal enclosure. The non-corrosive zinc alloy hub is suitable for indoor or outdoor use and seals tightly to protect the conduit from moisture, oil and dust.
Features
- Rugged metallic construction insures mechanical protection.
- Insulated throat protects wires and reduces the pulling effort.
- Rain, oil, and dust tight, high strength and non-corrosive zinc alloy.
- Bonds Rigid conduits or IMC to a load center.
- Design to provide water tight seal through conduit knockouts.
Certifications and Compliances
ELECMAN® Zinc IMC/Rigid conduit watertight conduit hubs with insulated throat shall be produced to the following specifications:
- UL Listed
- File No.: E503810
Specification Data

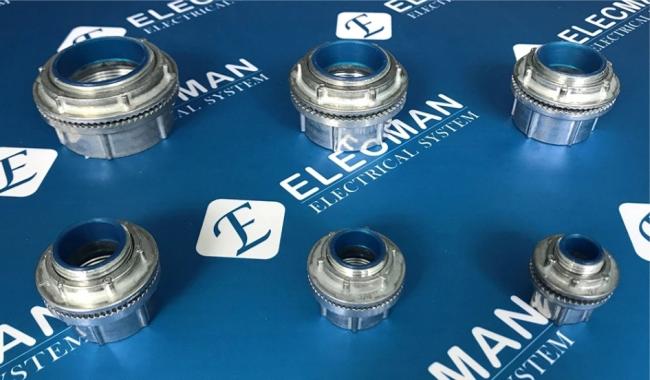

ELECMAN provides full size zinc IMC/Rigid conduit watertight conduit hubs with insulated throat from 1/2" to 4".
| CAT # | Trade Size |
| WHB50 | 1/2" |
| WHB75 | 3/4" |
| WHB100 | 1" |
| WHB125 | 1-1/4" |
| WHB150 | 1-1/2" |
| WHB200 | 2" |
| WHB250 | 2-1/2" |
| WHB300 | 3" |
| WHB350 | 3-1/2" |
| WHB400 | 4" |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
