Insulated IMC Watertight Rigid Conduit Fittings Hub With Bonding Screw Zinc

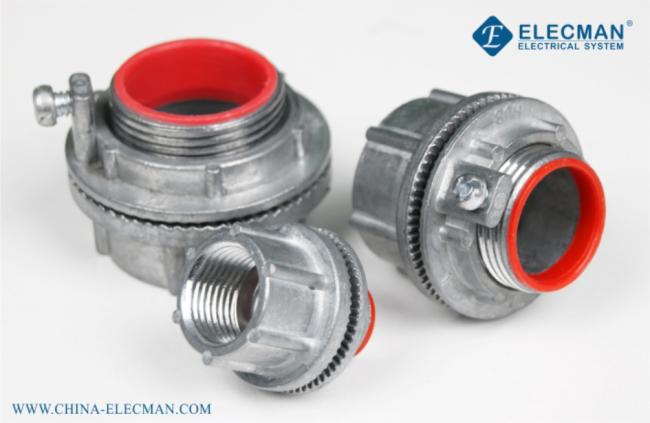

ELECMAN ® Zinc Insulated IMC/Rigid Conduit Watertight Conduit Hub With Bonding Screw

Applications

ELECMAN® Zinc insulated IMC/Rigid conduit watertight conduit hubs with bonding screw are used to connect threaded IMC/Rigid conduits to an enclosure or load center requiring a water-tight joint at knockout or slip-fit holes in dry or wet locations.

Features

• Rugged metallic construction insures mechanical protection.
• Insulated throat protects wires and reduces the pulling effort.
• Rain, oil, and dust tight, high strength and non-corrosive zinc alloy.
• Bonds Rigid conduits or IMC to a load center.
• Design to provide water tight seal through conduit knockouts.
• O-ring seals the assembly and provides a raintight seal.

Certifications and Compliances

ELECMAN® Zinc insulated IMC/Rigid watertight conduit hubs with bonding screw shall be produced to the following specification:

• UL Listed
• File No.: E503810

Specification Data

ELECMAN provides full size zinc insulated IMC/Rigid watertight conduit hubs with bonding screw from 1/2" to 4".

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
