Zinc Plated Steel EMT Conduit Fittings EMT Screw Connector Set

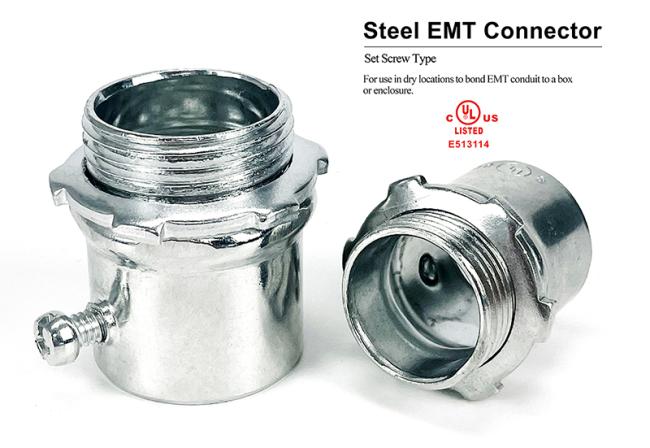

ELECMAN ® Steel EMT Conduit Connector Set Screw EMT Conduit To Box Type
Applications
ELECMAN® Steel EMT conduit connector set screw EMT conduit to box type is used to connect and effectively bond EMT conduit to steel outlet boxes, load centers and other metal enclosures. Their bodies and locknuts are made with die-cast zinc alloy for strength and their set screws are made from zinc-plated steel. Their set screws' Tri-Drive head design works with Phillips, slotted and square screwdrivers.
Features
- All steel construction insures mechanical protection for the raceway.
- Provide concrete-tight connections when taped.
- Male hub treads NPS.
- Insulated type are available.
- All components are zinc electro-plated for corrosion protection.
Certifications and Compliances
ELECMAN® Steel EMT conduit connectors set screw EMT conduit to box type shall be produced to the following specifications:
- UL Listed
- File No.: E513114
Specification Data
ELECMAN provides full size steel EMT conduit connectors set screw EMT conduit to box type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCON050 | 1/2" | 0.880 | 1.445 | 50 | 500 | 19.50 |
| SCON075 | 3/4" | 1.130 | 1.504 | 25 | 250 | 13.00 |
| SCON100 | 1" | 1.380 | 1.753 | 50 | 200 | 17.08 |
| SCON125 | 1-1/4" | 1.380 | 2.310 | 25 | 100 | 15.94 |
| SCON150 | 1-1/2" | 2.750 | 2.250 | 10 | 100 | 7.26 |
| SCON200 | 2" | 2.000 | 2.380 | 5 | 50 | 4.91 |
| SCON250 | 2-1/2" | 3.440 | 3.190 | - | 12 | 6.50 |
| SCON300 | 3" | 3.130 | 3.810 | - | 12 | 8.30 |
| SCON350 | 3-1/2" | 4.750 | 4.310 | - | 6 | 5.00 |
| SCON400 | 4" | 4.250 | 4.880 | - | 6 | 5.78 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
