Insulated Steel EMT Screw Connector Set Screw Type 1 Inch

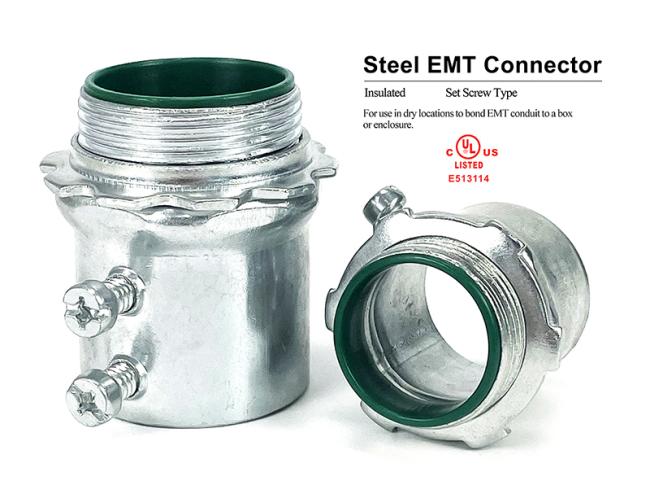

ELECMAN ® Insulated Steel EMT Conduit Connector Set Screw EMT Conduit To Box Type
Applications
ELECMAN® Insulated steel EMT conduit connector set screw EMT conduit to box type is used to connect and bond EMT conduit to a metal enclosure. It features galvanized steel construction. This is for indoor use only.
Features
- All steel construction insures mechanical protection for the raceway.
- Provide concrete-tight connections when taped.
- Male hub treads NPS.
- With insulated throat (throat color may vary).
- All components are zinc electro-plated for corrosion protection.
Certifications and Compliances
ELECMAN® Insulated steel EMT conduit connector set screw EMT conduit to box type to box type shall be produced to the following specifications:
- UL Listed
- File No.: E513114
Specification Data
ELECMAN provides full size insulated steel EMT conduit connector set screw EMT conduit to box type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCON050 | 1/2" | 0.880 | 1.507 | 50 | 500 | 19.55 |
| SCON075 | 3/4" | 1.130 | 1.566 | 25 | 250 | 13.05 |
| SCON100 | 1" | 1.380 | 1.815 | 50 | 200 | 17.13 |
| SCON125 | 1-1/4" | 1.380 | 2.389 | 25 | 100 | 15.99 |
| SCON150 | 1-1/2" | 2.750 | 2.329 | 10 | 100 | 7.31 |
| SCON200 | 2" | 2.000 | 2.459 | 5 | 50 | 4.96 |
| SCON250 | 2-1/2" | 3.440 | 3.300 | - | 12 | 6.55 |
| SCON300 | 3" | 3.130 | 3.920 | - | 12 | 8.35 |
| SCON350 | 3-1/2" | 4.750 | 4.420 | - | 6 | 5.05 |
| SCON400 | 4" | 4.250 | 4.990 | - | 6 | 5.83 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
