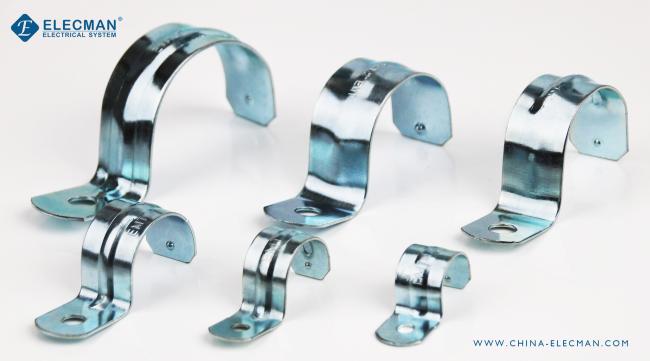

ELECMAN ® 1/2" - 4" Galvanized Steel EMT Conduit Strap One Hole Type
Applications
ELECMAN® Galvanized steel EMT conduit strap one hole type are used to securely fasten and support EMT conduits to a mounting surface.
Features
- All stamped steel construction insures mechanical protection.
- Sizes 1/2" - 2" snap on to a conduit allowing for easy positioning during installation before mounting.
- All straps are zinc plated for corrosion protection.
- Available in trade sizes 1/2 in. through 4 in.
- Snap-on type for easy installation.
- EMT one hole conduit strap design allows the installer to easily position the strap before mounting pipes on walls.
Certifications and Compliances
ELECMAN® Galvanized steel EMT conduit strap one hole type shall be produced to the following specification:
- UL Listed
- File No.: E513114
Specification Data
ELECMAN provides full size Galvanized steel EMT conduit strap one hole type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | Hole Diameter |
| ESO050 | 1/2" | 1.657 | 0.571 | 0.665 | 1/4" |
| ESO075 | 3/4" | 1.937 | 0.646 | 0.933 | 1/4" |
| ESO100 | 1" | 2.276 | 0.772 | 1.110 | 5/16" |
| ESO125 | 1-1/4" | 2.858 | 0.878 | 1.480 | 3/8" |
| ESO150 | 1-1/2" | 3.126 | 1.000 | 1.673 | 3/8" |
| ESO200 | 2" | 3.921 | 1.138 | 2.020 | 7/16" |
| ESO250 | 2-1/2" | 5.012 | 1.173 | 2.602 | 9/16" |
| ESO300 | 3" | 5.374 | 1.215 | 3.291 | 9/16" |
| ESO350 | 3-1/2" | 6.390 | 1.254 | 4.248 | 9/16" |
| ESO400 | 4" | 6.850 | 1.157 | 4.177 | 9/16" |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
