2 Holes Type Galvanized Steel IMC Rigid Conduit Fittings Strap 1/2" - 4"

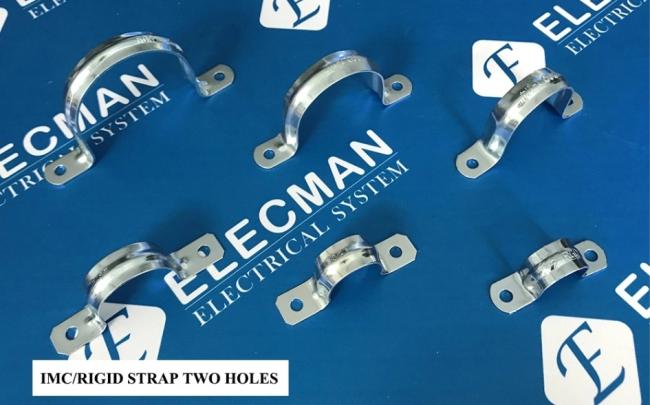

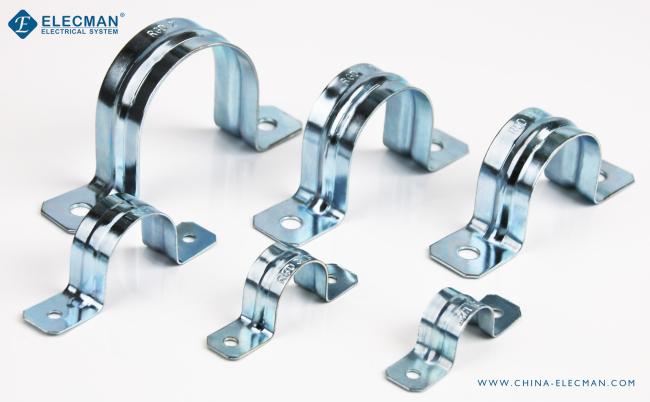

ELECMAN ® 1/2" - 4" Galvanized Steel IMC/Rigid Conduit Strap Two Holes Type
Applications
ELECMAN® Galvanized steel IMC/Rigid conduit straps two hole type are used to securely fasten and support IMC or Rigid conduits to a mounting surface.
Features
- All stamped steel construction insures mechanical protection.
- Sizes 1/2" - 2" snap on to a conduit allowing for easy positioning during installation before mounting.
- All straps are zinc plated for corrosion protection.
- Corrosion resistant.
- Available in trade sizes 1/2 in. through 4 in.
- Snap-on type for easy installation.
Certifications and Compliances
ELECMAN® Galvanized steel IMC/Rigid conduit strap two holes type shall be produced to the following specification:
- UL Listed
Specification Data
ELECMAN provides full size galvanized steel IMC/Rigid conduit straps two hole type from 1/2" to 4".

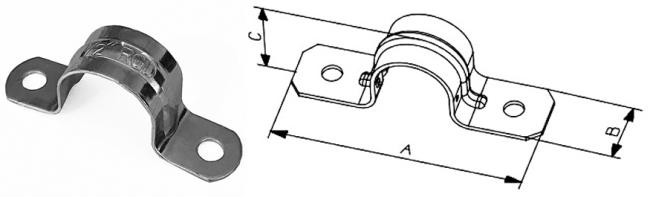

| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | Hole Diameter | Hole Spacing |
| RST050 | 1/2" | 2.240 | 0.574 | 0.732 | 3/16" | 1-13/16" |
| RST075 | 3/4" | 2.756 | 0.636 | 0.965 | 3/16" | 2-3/16" |
| RST100 | 1" | 3.252 | 0.713 | 1.157 | 1/4" | 2-9/16" |
| RST125 | 1-1/4" | 3.831 | 0.748 | 1.453 | 1/4" | 3-3/16" |
| RST150 | 1-1/2" | 4.323 | 0.791 | 1.975 | 1/4" | 3-3/8" |
| RST200 | 2" | 4.925 | 1.004 | 2.205 | 3/8" | 4-1/4" |
| RST250 | 2-1/2" | 6.106 | 1.004 | 2.969 | 3/8" | 5" |
| RST300 | 3" | 6.772 | 1.004 | 3.539 | 3/8" | 5-1/2" |
| RST350 | 3-1/2" | 7.425 | 1.004 | 4.110 | 7/16" | 6-3/16" |
| RST400 | 4" | 9.366 | 1.016 | 4.508 | 7/16" | 6-13/16" |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the strap body is made of high quality steel, every part of the strap are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
