Straight Flexible Conduit Fittings Liquid Tight Stainless Steel Sealtite Connectors Conduit To Box

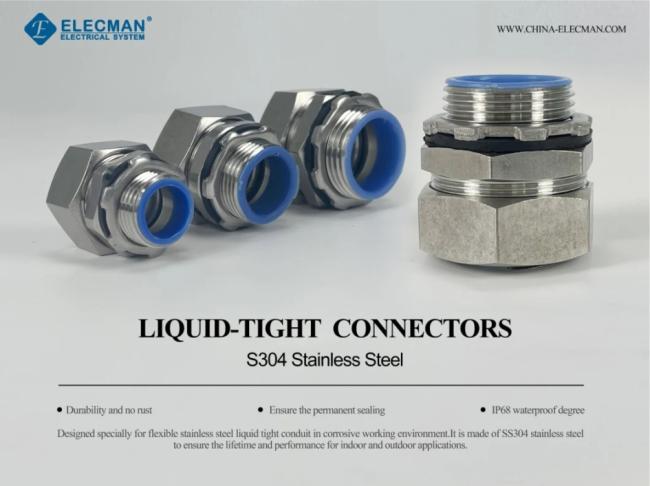

ELECMAN ® Stainless Steel Liquid Tight Connectors Straight Flexible Conduit To Box Type
Applications
ELECMAN® SS304 stainless steel liquid tight connectors straight type are designed specially for flexible stainless steel liquid tight conduit in corrosive working environment. It is made of SS304 stainless steel to ensure the lifetime and performance for indoor and outdoor applications.
Features
- Tapered threaded male hub NPT.
- Compact, slim diameter with small turning radius.
- Furnished with an insulated throat with steel locknut and sealing ring.
- Liquid tight/rain tight/concrete tight/oil tight.
- Suitable for wet locations.
- Long ferrule prevents pullout and tight bend conduit “pop-out”.
Certifications and Compliances
ELECMAN® SS304 stainless steel liquid tight connectors straight type shall be produced to the following specification:
- UL Listed
Specification Data
ELECMAN provides full size SS304 stainless steel liquid tight connectors straight type from 3/8" to 4".
| CAT # | Trade Size |
| SLTS038 | 3/8" |
| SLTS050 | 1/2" |
| SLTS075 | 3/4" |
| SLTS100 | 1" |
| SLTS125 | 1-1/4" |
| SLTS150 | 1-1/2" |
| SLTS200 | 2" |
| SLTS212 | 2-1/2" |
| SLTS300 | 3" |
| SLTS350 | 3-1/2" |
| SLTS400 | 4" |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the liquid tight connector body is made of high quality SS304 stainless steel, the insulated parts are made of good quality plastic, every parts of the connector are produced according to the high standard.
ELECMAN chooses to use the high-quality raw material, professional workers with high standard production technology, strict quality control, from raw material to products. ELECMAN has different controlling systems, so that make all ELECMAN products with high quality.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 3/8" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
